Headlight System: Wiring Diagram

G14613459Courtesy of SUBARU OF AMERICA, INC.

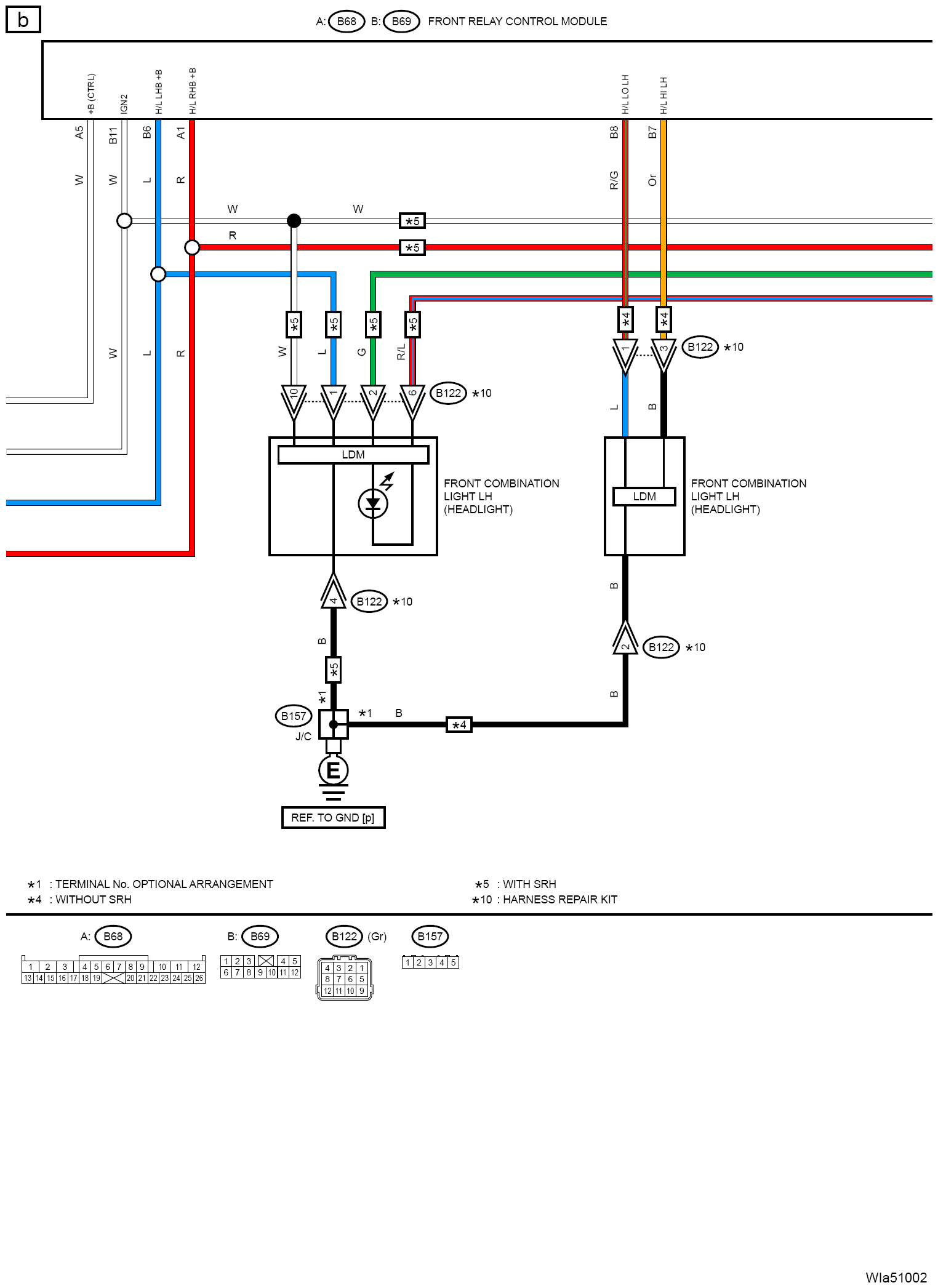

G14613460Courtesy of SUBARU OF AMERICA, INC.

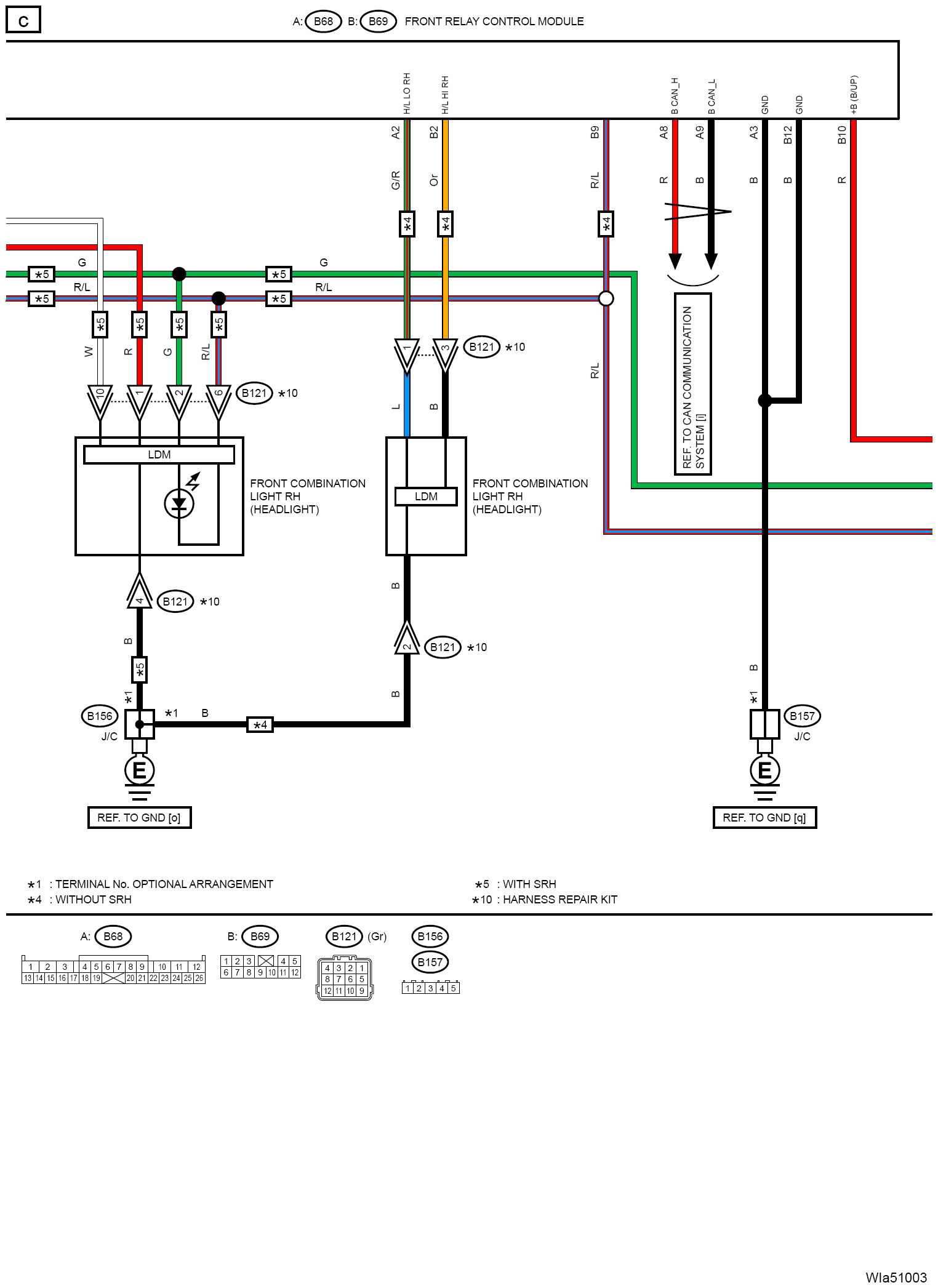

G14613461Courtesy of SUBARU OF AMERICA, INC.

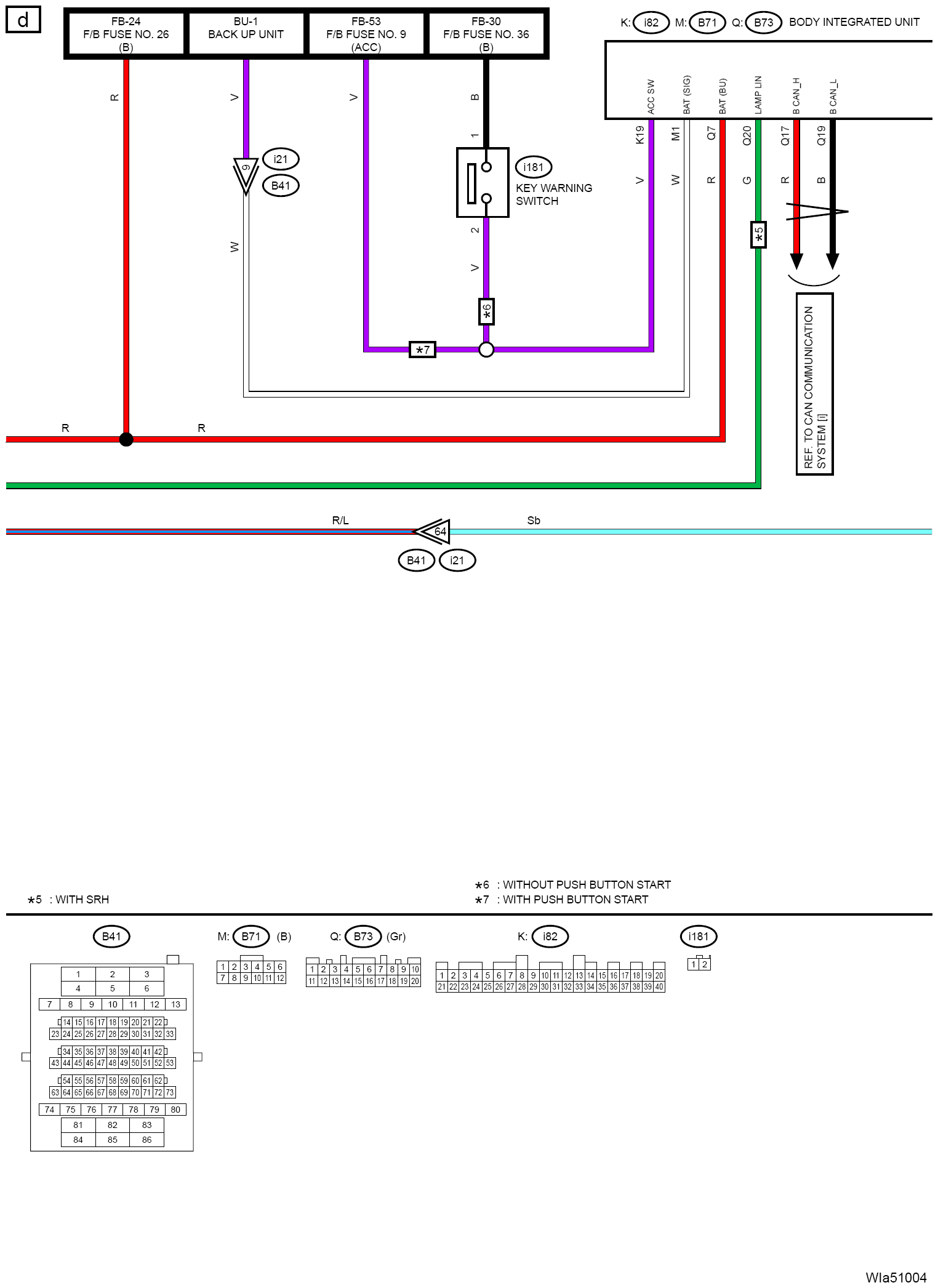

G14613462Courtesy of SUBARU OF AMERICA, INC.

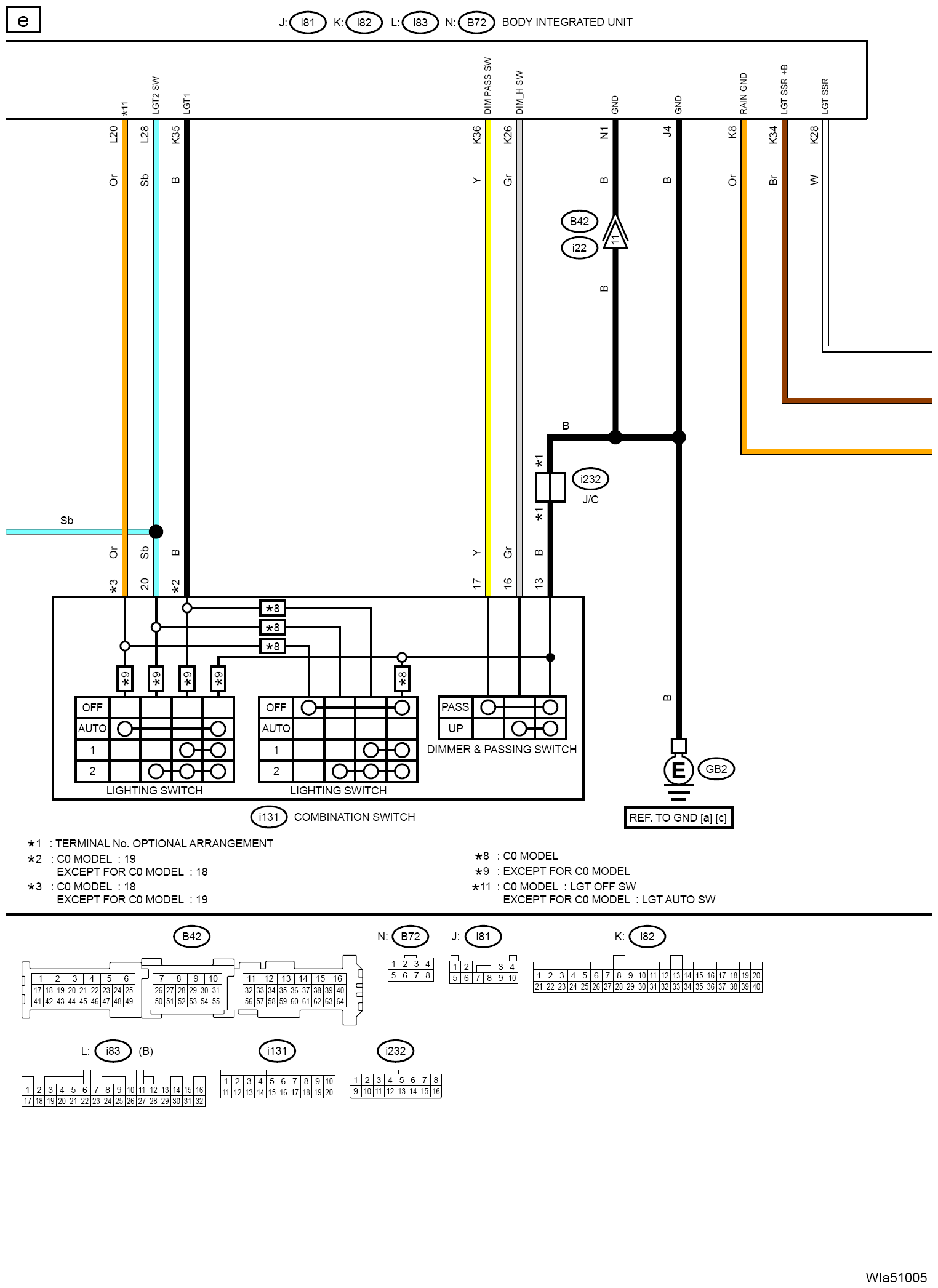

G14613463Courtesy of SUBARU OF AMERICA, INC.

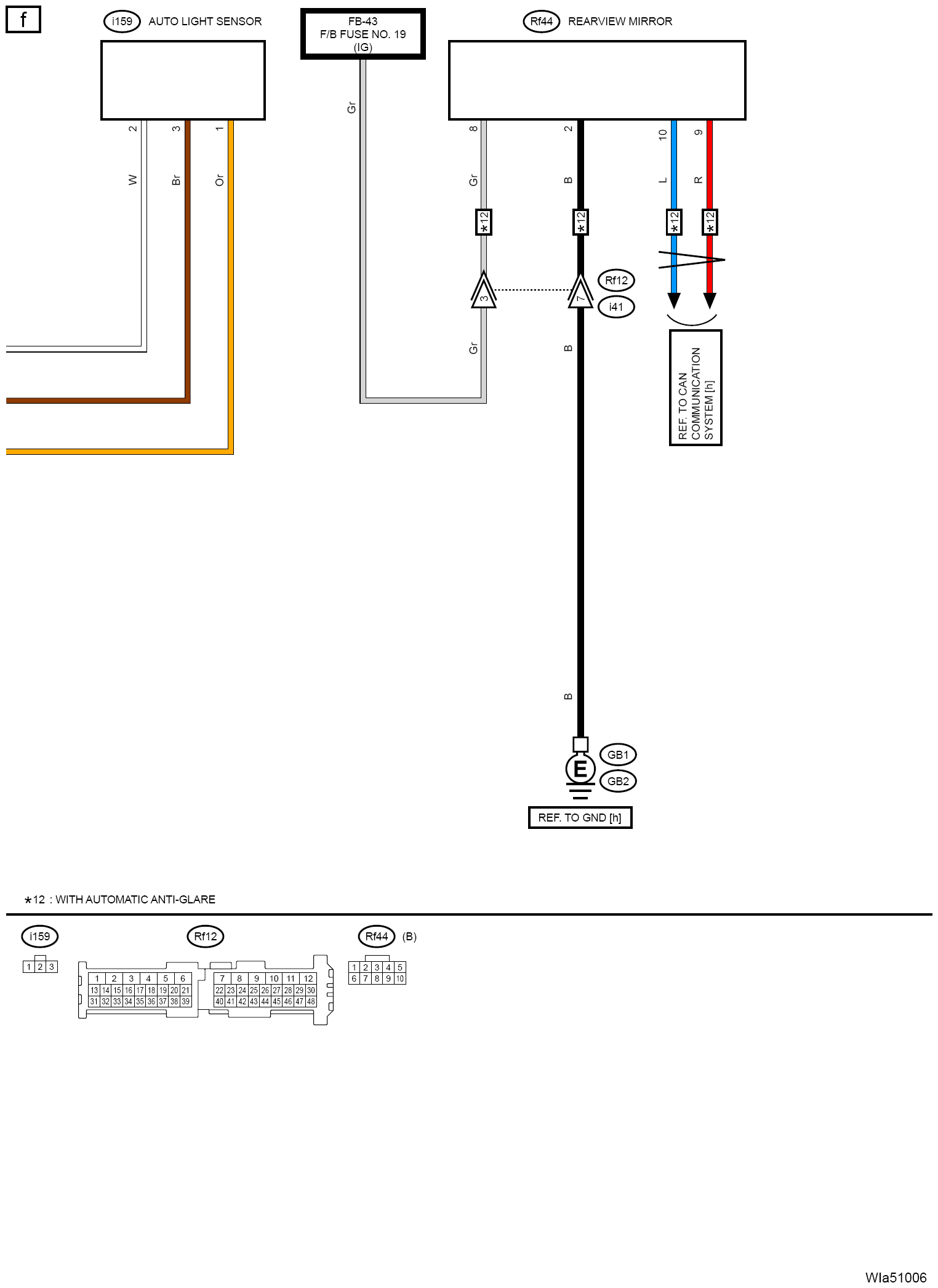

G14613464Courtesy of SUBARU OF AMERICA, INC.
