Blind Spot Detection/Rear Cross Traffic Alert
>>
Wiring Diagram

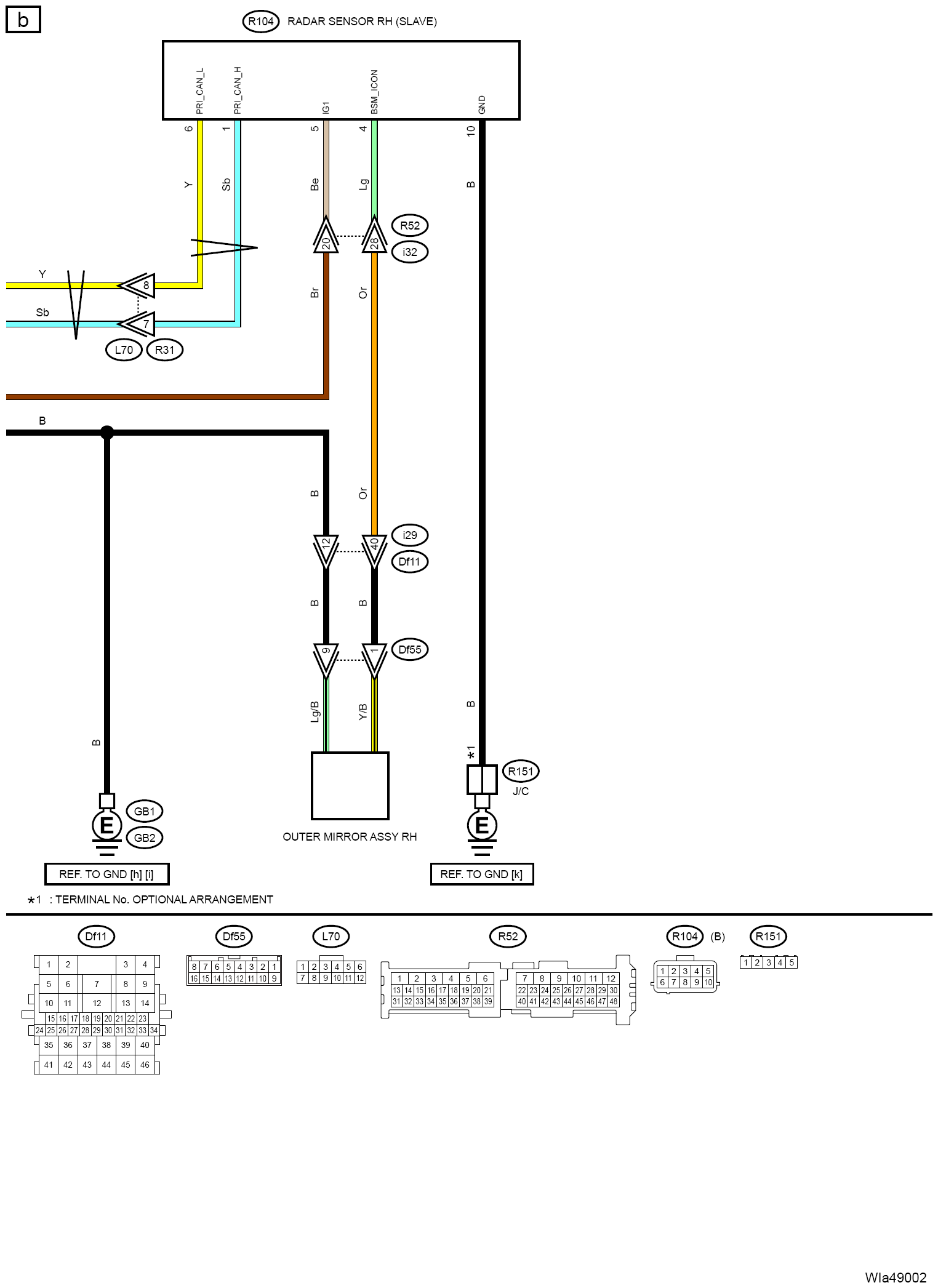

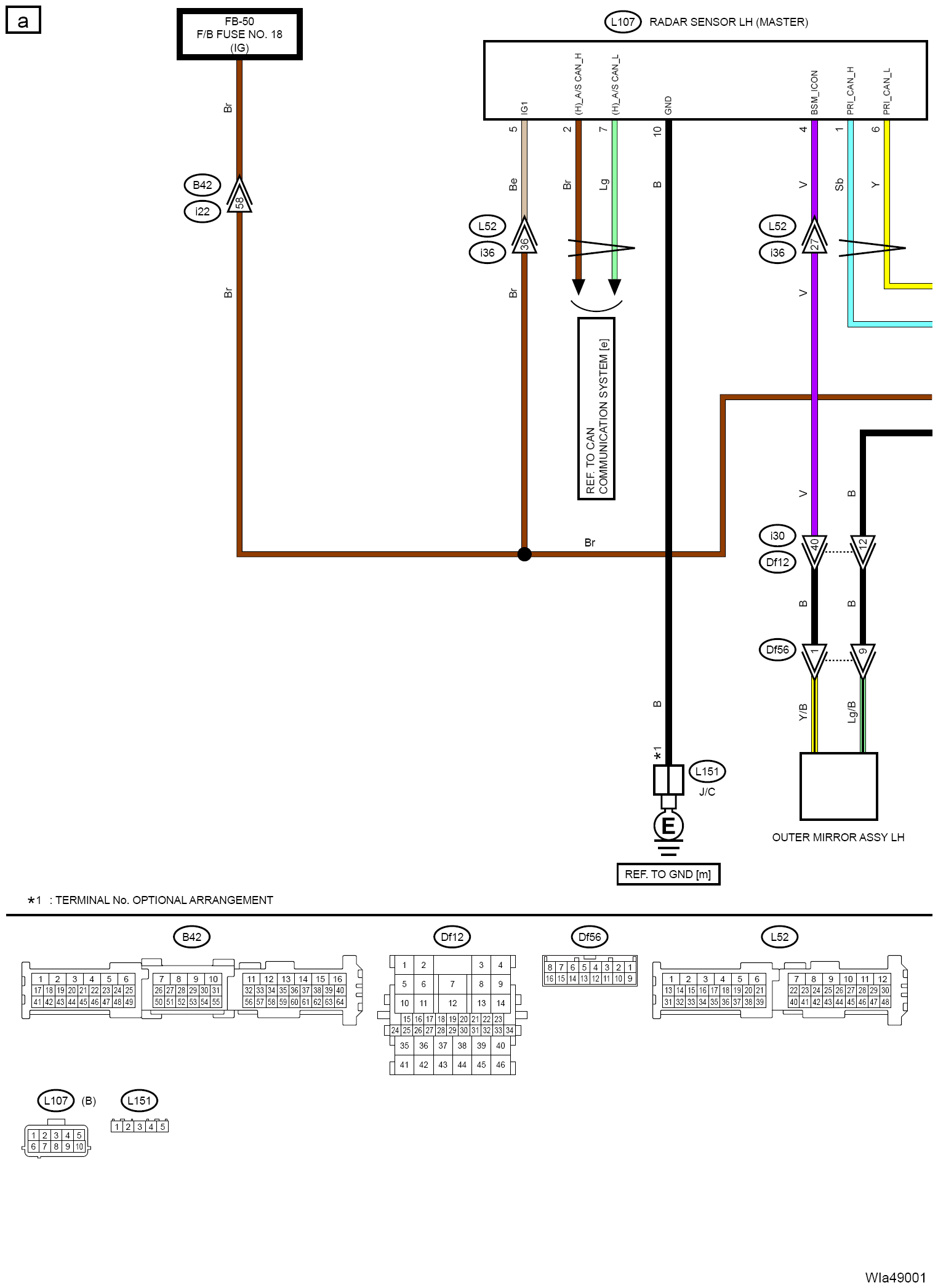

Blind Spot Detection/Rear Cross Traffic Alert: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
