Airbag System: Wiring Diagram

G14613313Courtesy of SUBARU OF AMERICA, INC.

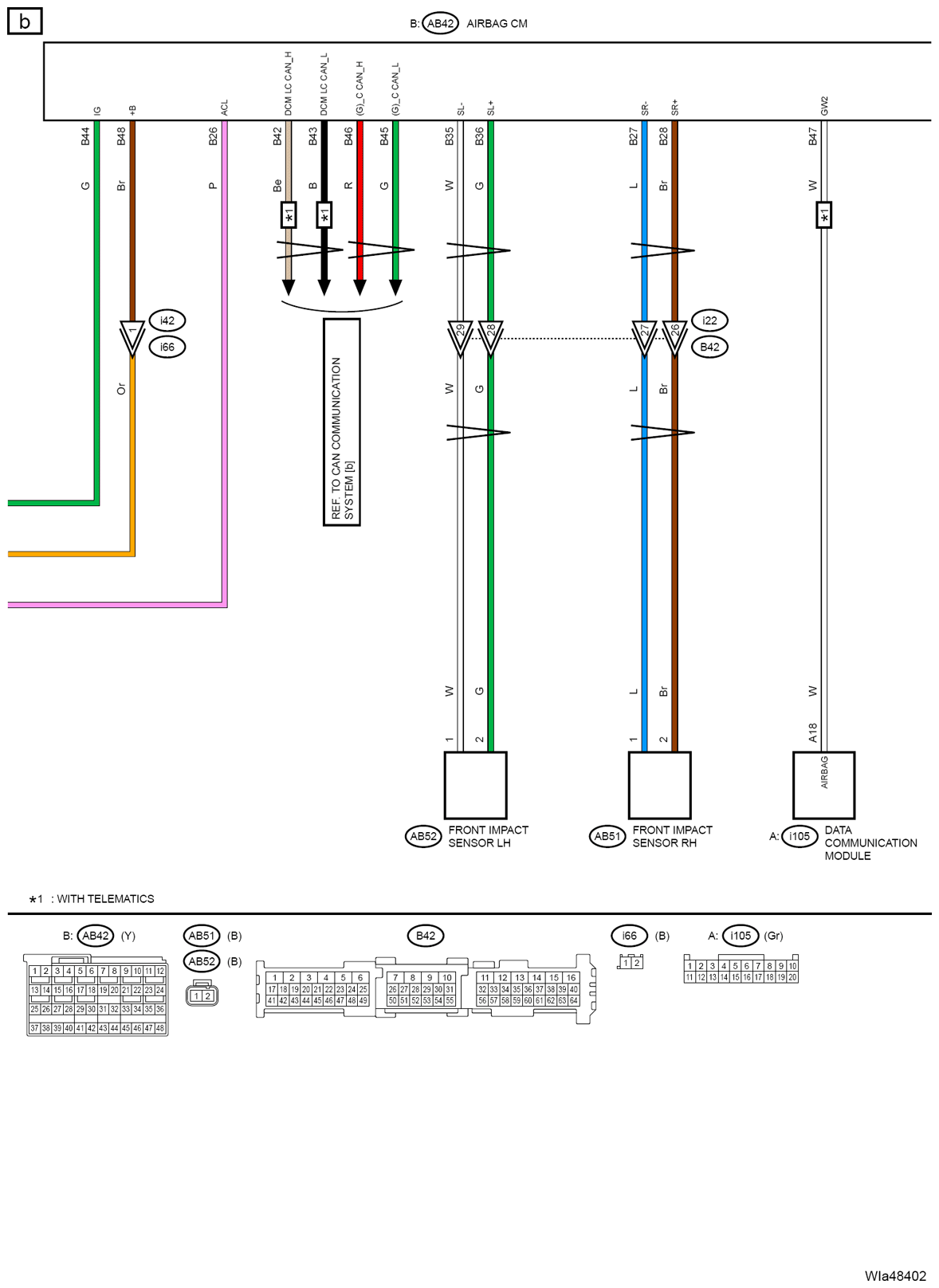

G14613314Courtesy of SUBARU OF AMERICA, INC.

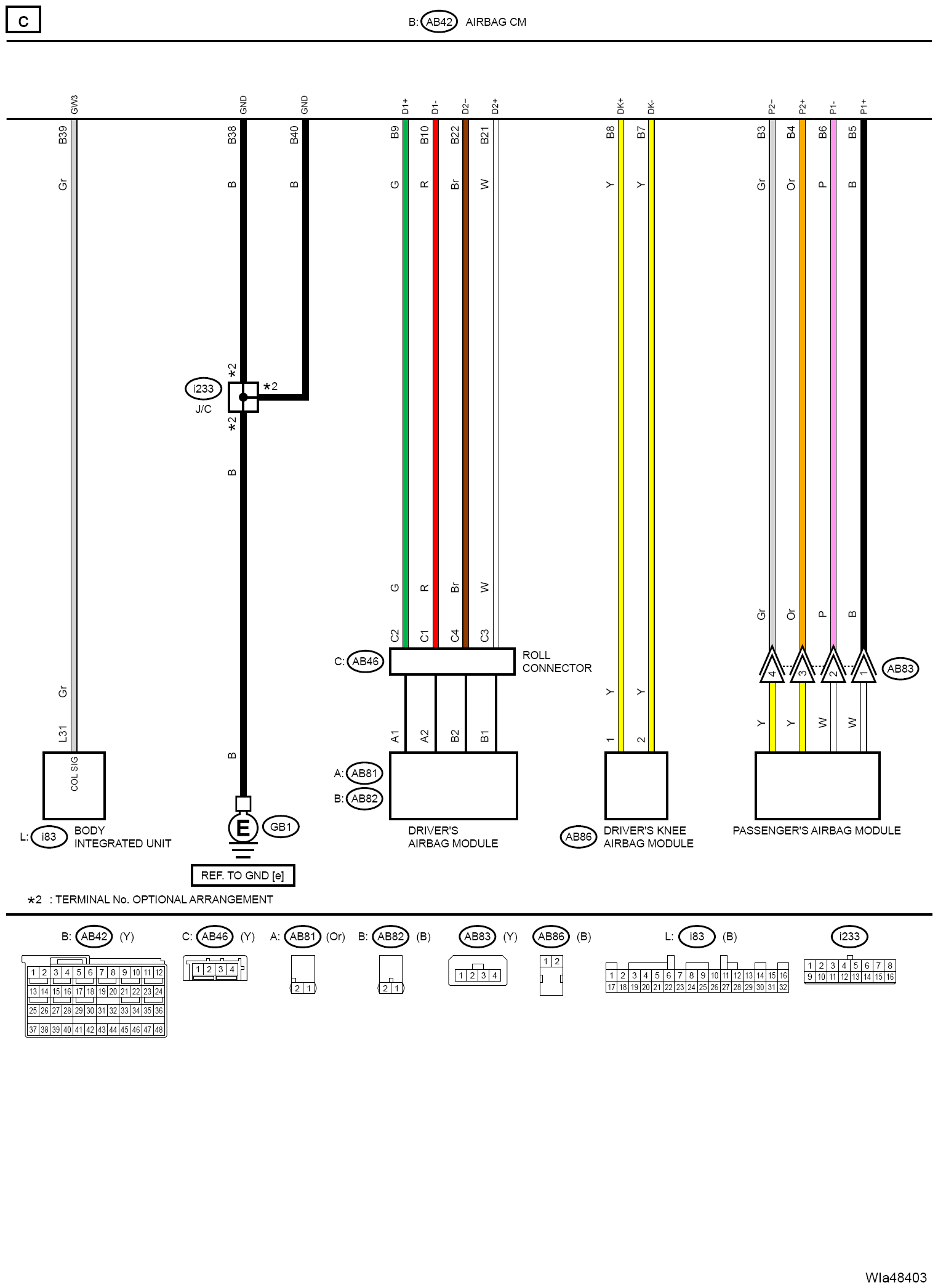

G14613315Courtesy of SUBARU OF AMERICA, INC.

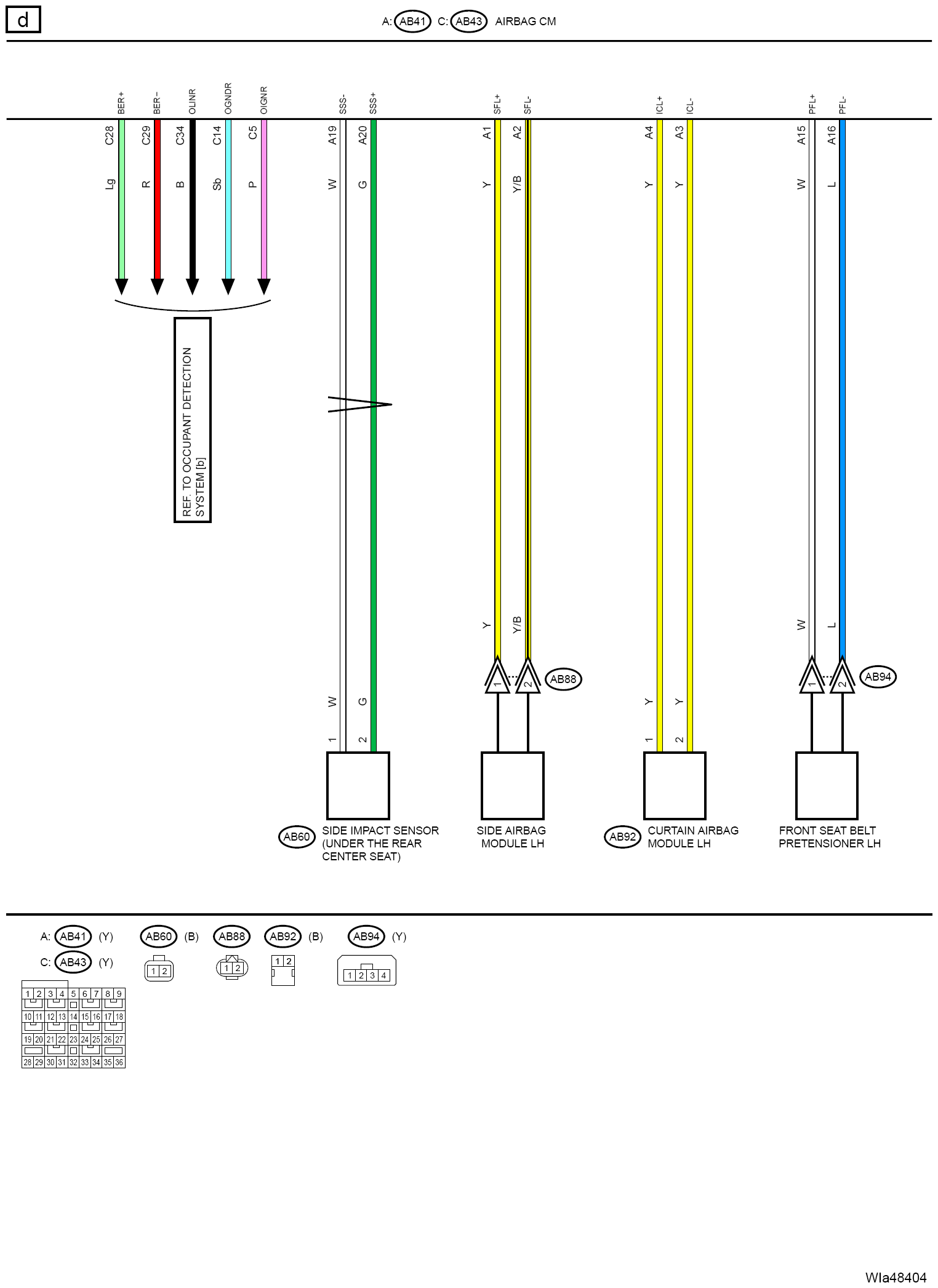

G14613316Courtesy of SUBARU OF AMERICA, INC.

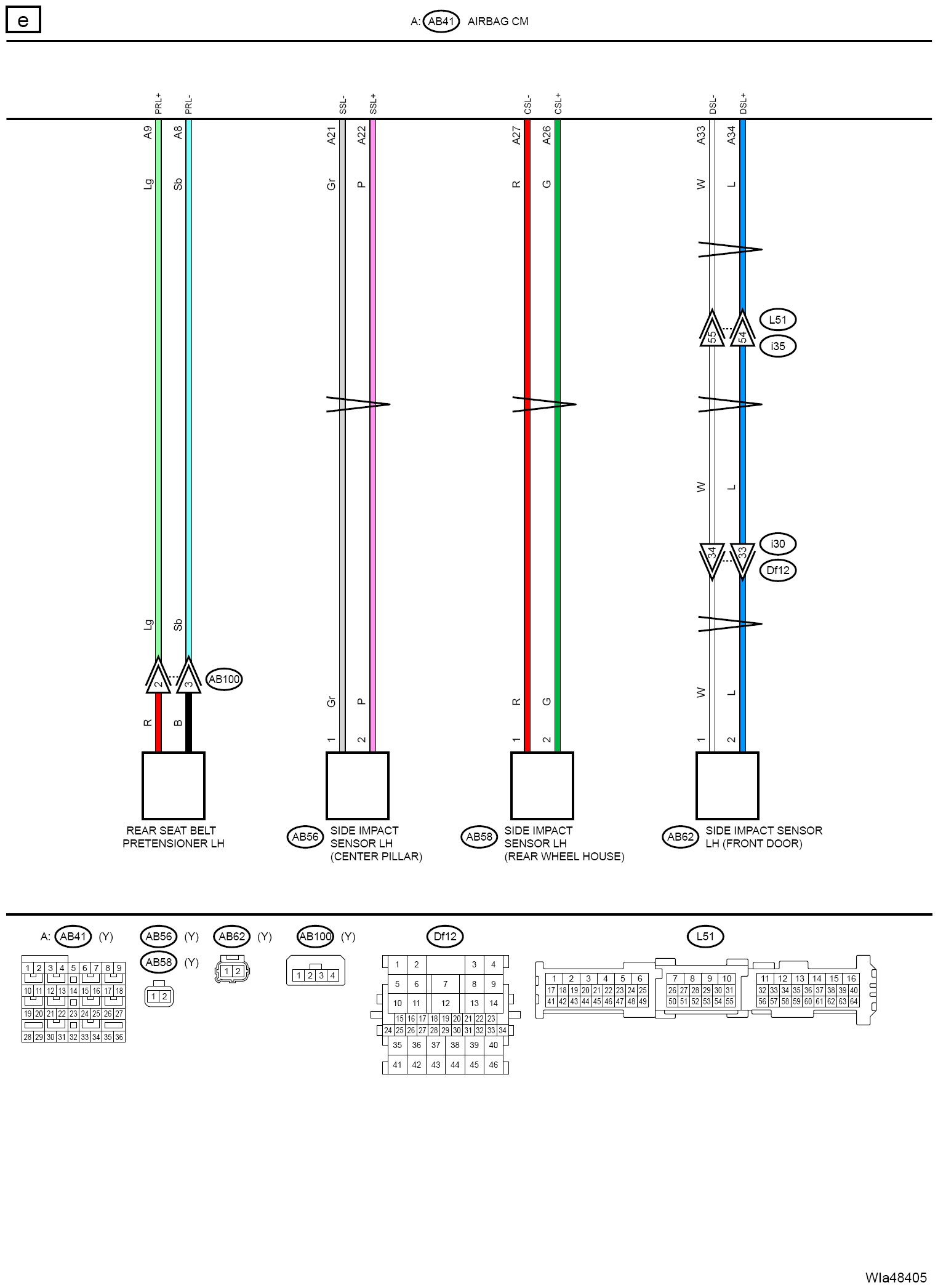

G14613317Courtesy of SUBARU OF AMERICA, INC.

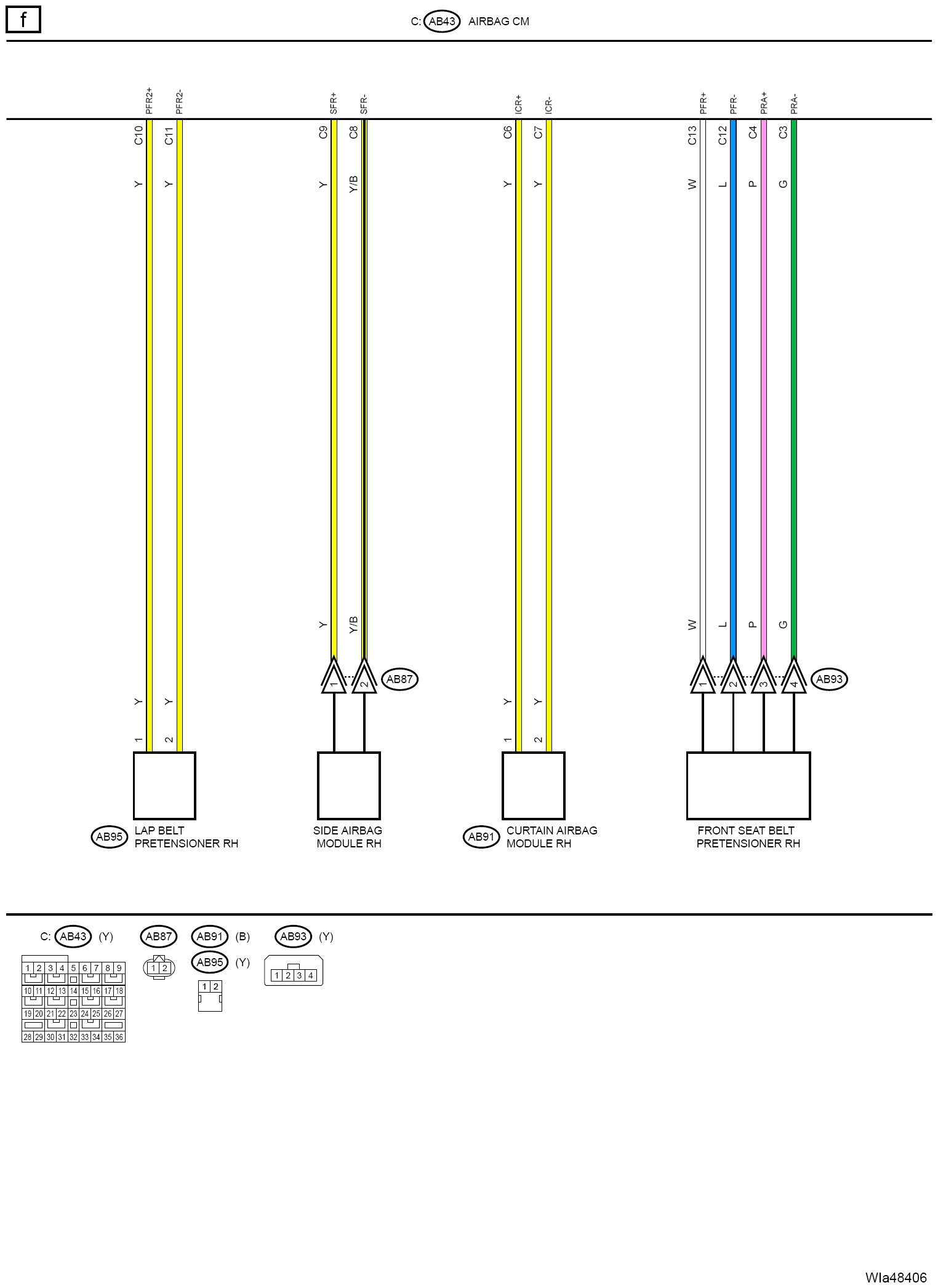

G14613318Courtesy of SUBARU OF AMERICA, INC.

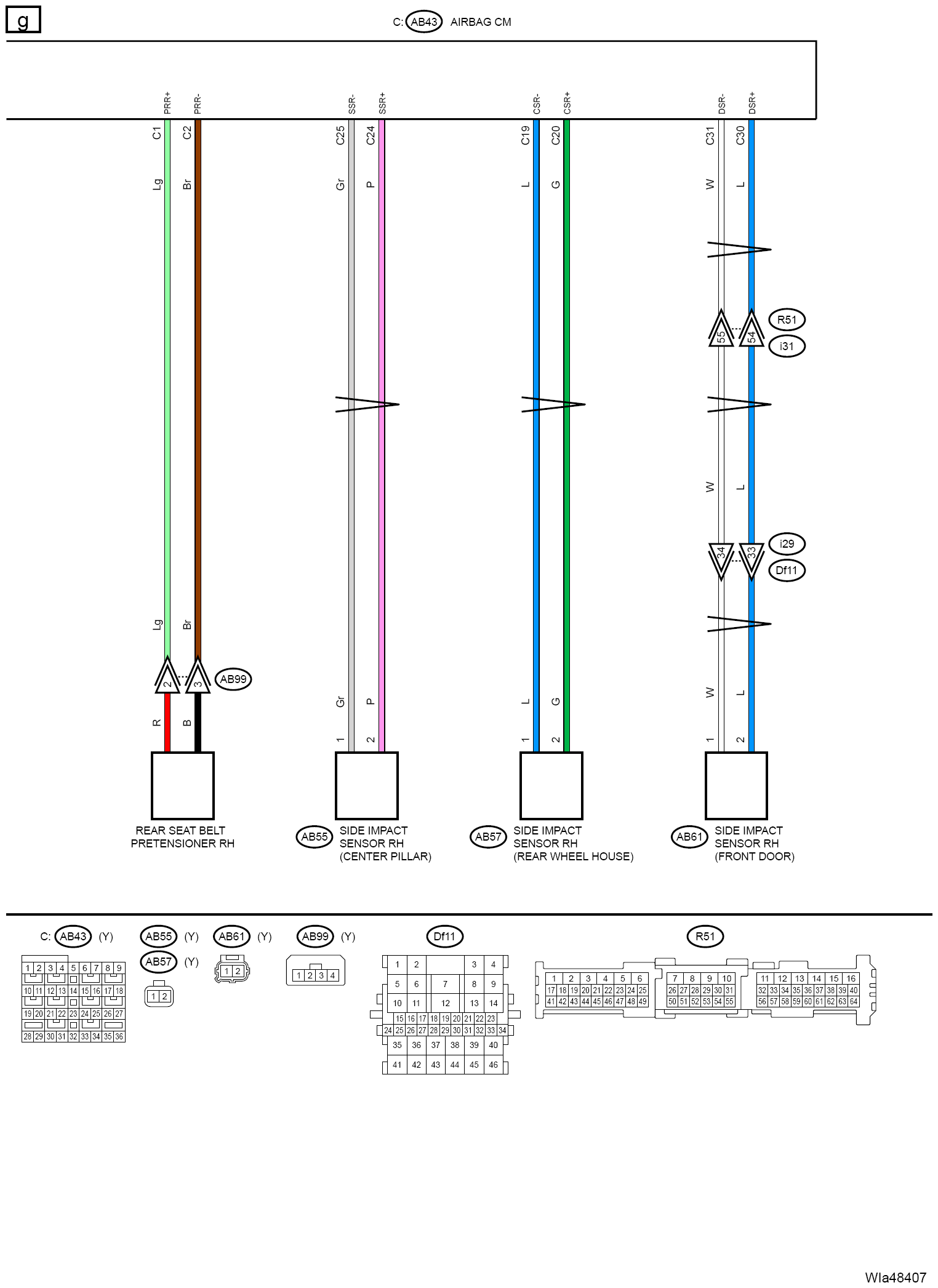

G14613319Courtesy of SUBARU OF AMERICA, INC.
