DTC C1241: Rear Left Abs Sensor Circuit

DTC detecting condition:

Judge as malfunction when the current value of the wheel speed sensor is out of normal range for a predetermined time or more.

Trouble symptom:

ABS does not operate.
VDC does not operate.
AVH does not function.
EyeSight does not operate.

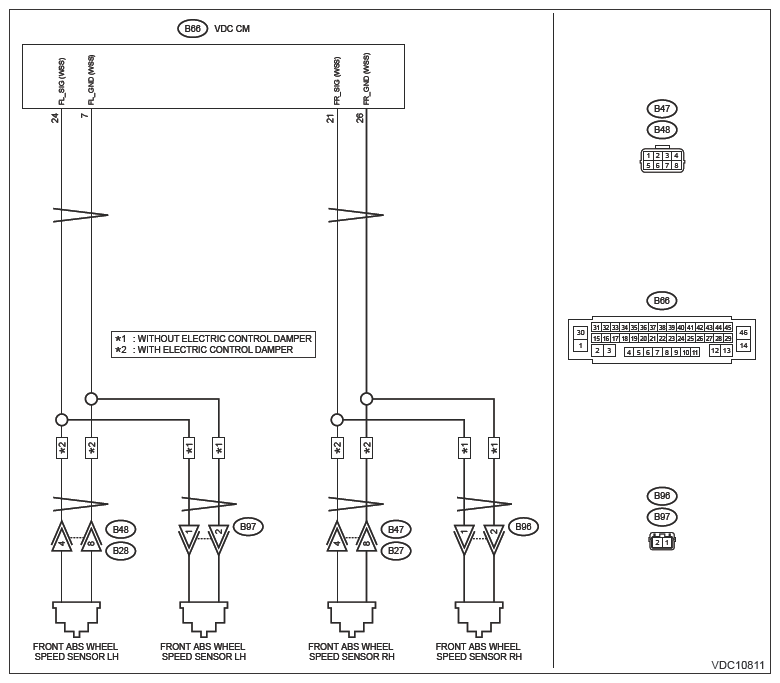

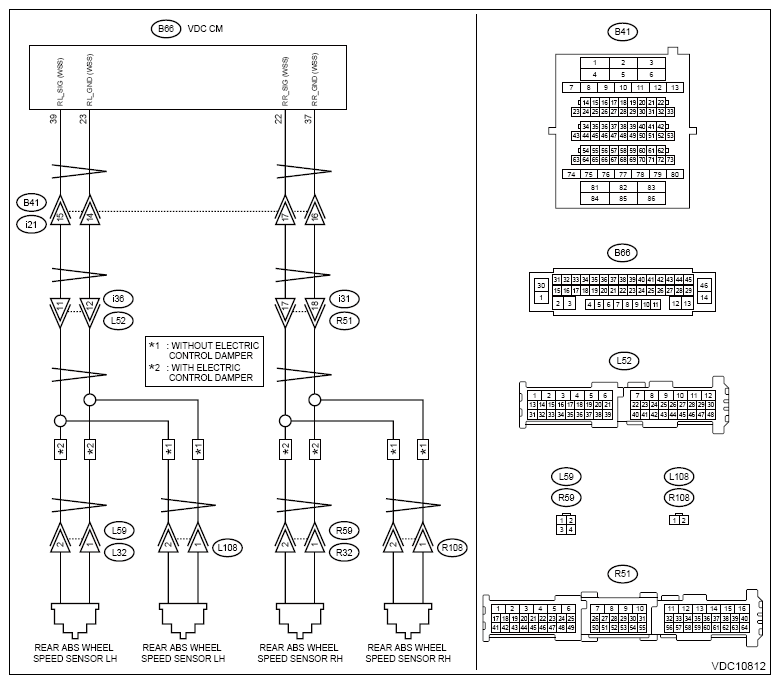

Wiring diagram:

Vehicle dynamics control system Ref. to WIRING SYSTEM>VEHICLE DYNAMICS CONTROL SYSTEM>WIRING DIAGRAM

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

This DTC may be stored when the wheel speed sensor connector is disconnected regardless of the ignition switch condition (ON/OFF). Perform the Clear Memory after diagnosis if a DTC is recorded. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY

CHECK POOR CONTACT OF CONNECTOR .
Check if there is poor contact between VDC Control Module & H/U and ABS wheel speed sensor.

Is there poor contact?

Yes : Repair the connector.

No : Go to 2.
CHECK HARNESS CONNECTOR BETWEEN VDC Control Module & H/U AND ABS WHEEL SPEED SENSOR (CHECK FOR OPEN CIRCUIT) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector (B66) from the VDC Control Module & H/U.
3. Disconnect the connector from ABS wheel speed sensor.
4. Measure the resistance between VDC Control Module & H/U connector and ABS wheel speed sensor connector.
  Connector & terminal

  DTC C1211

  Without electronically-controlled damper

  (B66) No. 21 - (B96) No. 1:

  (B66) No. 26 - (B96) No. 2:

  With electronically-controlled damper

  (B66) No. 21 - (B47) No. 4:

  (B66) No. 26 - (B47) No. 8:

  DTC C1221

  Without electronically-controlled damper

  (B66) No. 24 - (B97) No. 1:

  (B66) No. 7 - (B97) No. 2:

  With electronically-controlled damper

  (B66) No. 24 - (B46) No. 4:

  (B66) No. 7 - (B46) No. 8:

  DTC C1231

  Without electronically-controlled damper

  (B66) No. 22 - (R108) No. 2:

  (B66) No. 37 - (R108) No. 1:

  With electronically-controlled damper

  (B66) No. 22 - (R59) No. 2:

  (B66) No. 37 - (R59) No. 1:

  DTC C1241

  Without electronically-controlled damper

  (B66) No. 39 - (L108) No. 2:

  (B66) No. 23 - (L108) No. 1:

  With electronically-controlled damper

  (B66) No. 39 - (L59) No. 2:

  (B66) No. 23 - (L59) No. 1:
Is the resistance less than 1 Ω?

Yes : Go to 3.

No : Repair the harness connector between VDC Control Module & H/U and ABS wheel speed sensor.
CHECK GROUND SHORT OF HARNESS .
Measure the resistance between VDC Control Module & H/U connector and chassis ground.

Connector & terminal

DTC C1211

(B66) No. 26 - Chassis ground:

DTC C1221

(B66) No. 7 - Chassis ground:

DTC C1231

(B66) No. 37 - Chassis ground:

DTC C1241

(B66) No. 23 - Chassis ground:

Is the resistance 1 MΩ or more?

Yes : Go to 4.

No : Repair the harness connector between VDC Control Module & H/U and ABS wheel speed sensor.
CHECK ABS WHEEL SPEED SENSOR POWER SUPPLY CIRCUIT .
1. Connect the VDC Control Module & H/U connector.
2. Connect the ABS wheel speed sensor connector.
3. Turn the ignition switch to ON.
4. Measure the voltage between ABS wheel speed sensor connector and chassis ground.
  Connector & terminal

  DTC C1211

  Without electronically-controlled damper

  (B96) No. 1 (+) - Chassis ground (-):

  With electronically-controlled damper

  (B47) No. 4 (+) - Chassis ground (-):

  DTC C1221

  Without electronically-controlled damper

  (B97) No. 1 (+) - Chassis ground (-):

  With electronically-controlled damper

  (B48) No. 4 (+) - Chassis ground (-):

  DTC C1231

  Without electronically-controlled damper

  (R108) No. 2 (+) - Chassis ground (-):

  With electronically-controlled damper

  (R59) No. 2 (+) - Chassis ground (-):

  DTC C1241

  Without electronically-controlled damper

  (L108) No. 2 (+) - Chassis ground (-):

  With electronically-controlled damper

  (L59) No. 2 (+) - Chassis ground (-):
Is the voltage 5 - 16 V?

Yes : Go to 6.

No : Go to 5.
CHECK VDC Control Module & H/U POWER SUPPLY CIRCUIT .
1. Turn the ignition switch to OFF.
2. Disconnect the VDC Control Module & H/U connector.
3. Turn the ignition switch to ON.
4. Measure the voltage between VDC Control Module & H/U connector terminals.
  Connector & terminal

  (B66) No. 1 (+) - (B66) No. 14 (-):

  (B66) No. 30 (+) - (B66) No. 46 (-):

  (B66) No. 36 (+) - (B66) No. 46 (-):
Is the voltage 10 - 15 V?

Yes : Go to 6.

No : Check the generator, battery and VDC Control Module & H/U power supply circuit.
CHECK ABS WHEEL SPEED SENSOR .
Check the ABS wheel speed sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>FRONT ABS WHEEL SPEED SENSOR>INSPECTION Ref. to VEHICLE DYNAMICS CONTROL (VDC)>REAR ABS WHEEL SPEED SENSOR>INSPECTION

Is the check result OK?

Yes : Go to 7.

No : Replace the ABS wheel speed sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>FRONT ABS WHEEL SPEED SENSOR Ref. to VEHICLE DYNAMICS CONTROL (VDC)>REAR ABS WHEEL SPEED SENSOR
CHECK VDC Control Module & H/U .
1. Connect all connectors.
2. Using the Subaru Select Monitor, perform the clear memory of [Brake Control]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY
3. Execute the inspection mode. Ref. to BRAKE CONTROL (DIAGNOSTICS)>INSPECTION MODE
4. Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
Is the same DTC displayed?

Yes : Replace the VDC Control Module & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDC CONTROL MODULE & H/U)

No : Go to 8.
CHECK DETECTION OF OTHER DTCS FOR VDC .
Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)

Is any other DTC displayed?

Yes : Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST

No : Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
