Rear Seat: Disassembly

  1. Prior to starting work, check the following precautions. Ref. to SEATS>GENERAL DESCRIPTION>CAUTION
  2. Remove the rear seat. Ref. to SEATS>REAR SEAT>REMOVAL
  3. Remove the headrest assembly.
  4. Remove the knob rear backrest.

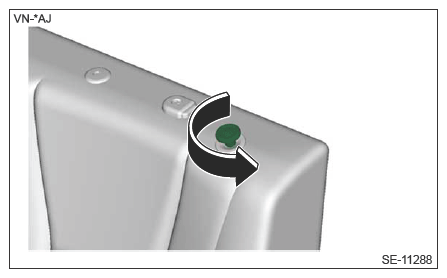

    G14612720Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the armrest assembly rear seat. (Models with armrest)
    1. Slide to remove the cover.
    2. Remove the bolts, and remove the armrest assembly rear seat.

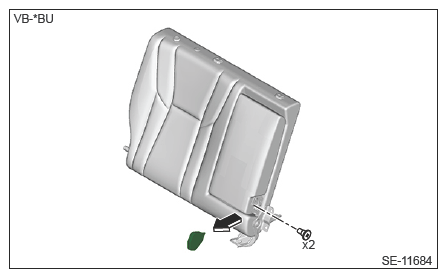

      G14612721Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cover backrest rear seat and seat pad assembly rear backrest.
    1. Detach the plastic fastener at the bottom of backrest assembly, and turn over the cover backrest rear seat.
      G14612722Courtesy of SUBARU OF AMERICA, INC.
      G14612723Courtesy of SUBARU OF AMERICA, INC.
    2. Detach the plastic fasteners on the right and left of the backrest assembly.

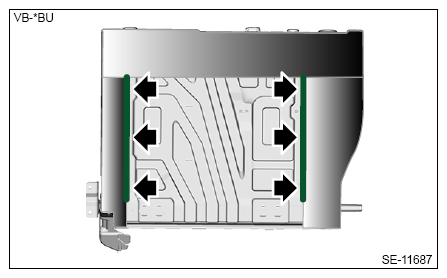

      G14612724Courtesy of SUBARU OF AMERICA, INC.
      G14612725Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bushing headrest and knob guide.
      NOTE:

      Catch the tip of headrest bushing with pliers and push it from inside seat to outside to remove it.

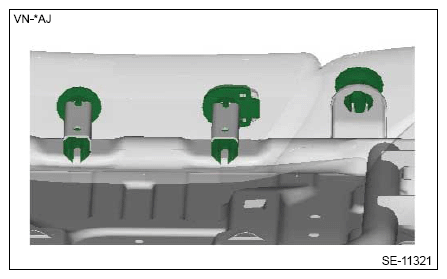

      G14612726Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the cover backrest rear seat and seat pad assembly rear backrest.
  7. Remove the bolt and remove the hinge assembly rear seat.

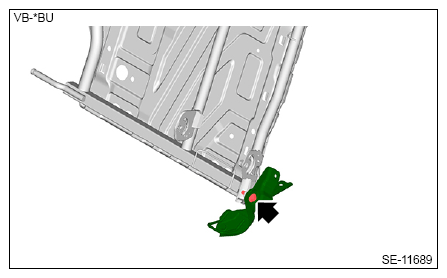

    G14612727Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the lock assembly.
    CAUTION:

    Pay attention to the burrs on the panel edge.

    1. Disconnect the connector.
    2. Remove the bolts, and remove the lock assembly.

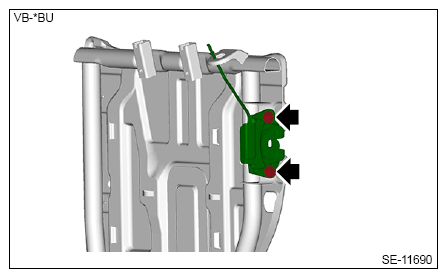

      G14612728Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the hog rings, then remove the cover backrest rear seat.
    CAUTION:
    • If the seat heater unit is removed, replace the seat pad assembly with a new part.
    • If the seat heater unit is reused, remove the polyurethane section and double-sided tape from the reverse side completely. Use new double-sided tape.

      Preparation items:

      Double-sided tape: NITTO DENKO 501L or equivalent

    • Model without armrest

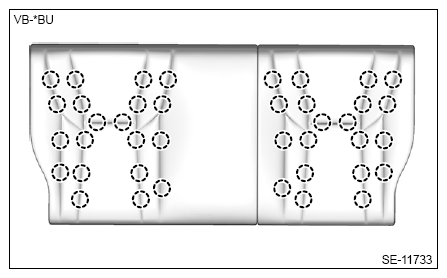

      G14612729Courtesy of SUBARU OF AMERICA, INC.
    • Model with armrest

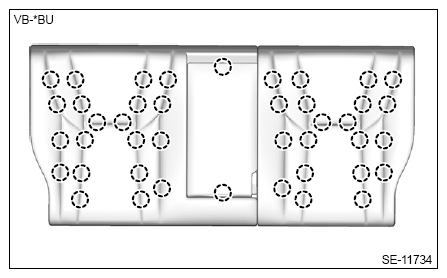

      G14612730Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the hog rings on the back side of the rear seat cushion assembly.

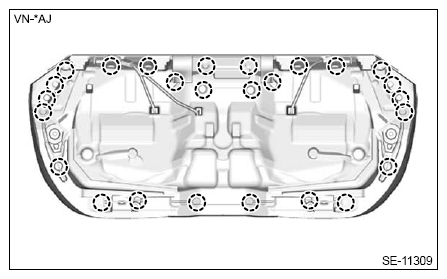

    G14612731Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the hog rings, then remove the cover cushion rear seat.
    CAUTION:
    • If the seat heater unit is removed, replace the seat pad assembly with a new part.
    • If the seat heater unit is reused, remove the polyurethane section and double-sided tape from the reverse side completely. Use new double-sided tape.

      Preparation items:

      Double-sided tape: NITTO DENKO 501L or equivalent

    • If the seating sensor mat is removed, replace the pad & frame assembly rear cushion and the seating sensor mat with new parts. If the seating sensor mat is reused, the detection may not operate properly.

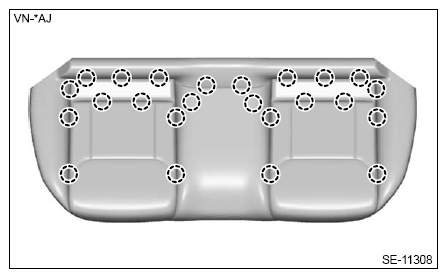

    G14612732Courtesy of SUBARU OF AMERICA, INC.
