Trunk Lid Garnish: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL
  3. Remove the garnish assembly trunk.
    1. Disconnect the trunk opener button connector.

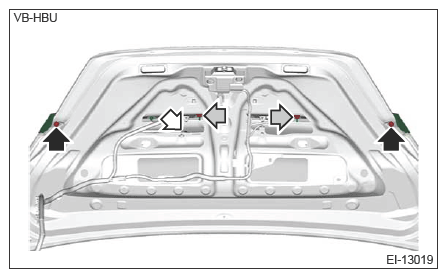

    2. Remove the bolts and nuts.
      G14612975Courtesy of SUBARU OF AMERICA, INC.

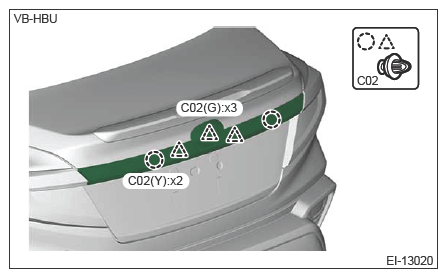

    3. Release the clips, and remove the garnish assembly trunk.
      G14612976Courtesy of SUBARU OF AMERICA, INC.
