Instrument Panel Lower Cover: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
  • Be careful not to damage the airbag system harness when servicing the instrument panel. Damage may cause the system to malfunction.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the clips, and remove the cover assembly instrument panel side LH.
    NOTE:
    • Use a plastic remover.
    • If removing is difficult, remove the weather strip and remove it from the gap using a plastic remover.

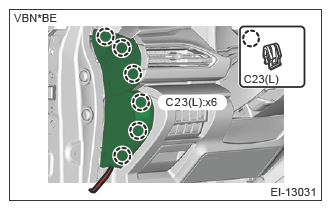

    G14612168Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the cover LWR driver.
    CAUTION:
    • When removing the cover LWR driver, be sure to pull it toward you.

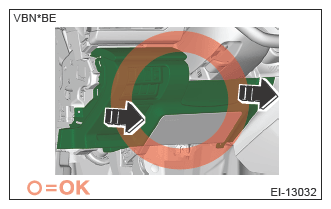

      G14612993Courtesy of SUBARU OF AMERICA, INC.
    • If attempting to remove by turning it laterally, the bridging part may be damaged.

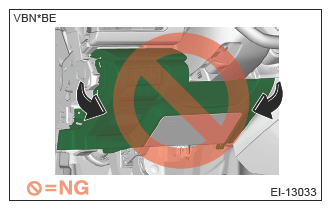

      G14612994Courtesy of SUBARU OF AMERICA, INC.
    • If attempting to remove by turning it upward, the claws may be damaged.

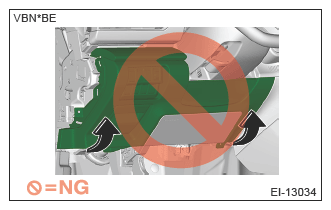

      G14612995Courtesy of SUBARU OF AMERICA, INC.
    1. Remove the screws and release the clip.
    2. Disconnect each connector and remove the cover LWR driver.

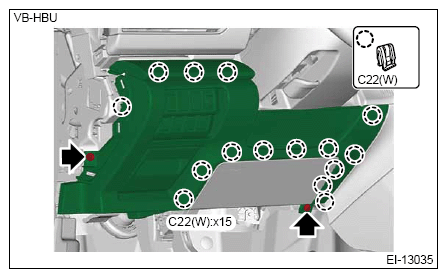

      G14612996Courtesy of SUBARU OF AMERICA, INC.
