Assist Grip: Removal

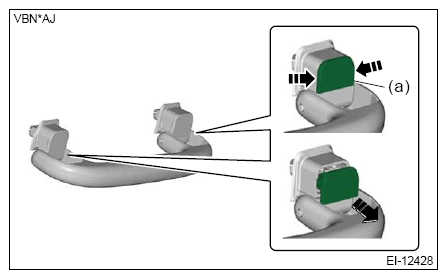

  1. Pull both sides of the cap assist grip (a) using a flat tip screwdriver or similar tool wrapped with a protection tape.
    G14613070Courtesy of SUBARU OF AMERICA, INC.
  2. Pinch and remove the steel clip using long-nose pliers wrapped with protection tape.
    G14613071Courtesy of SUBARU OF AMERICA, INC.
  3. Pull the assist grip toward yourself (toward the vehicle center) to remove.
