Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Lift up the vehicle.
  3. Remove the screw and clips, and turn over the mud guard front.
    G14612372Courtesy of SUBARU OF AMERICA, INC.

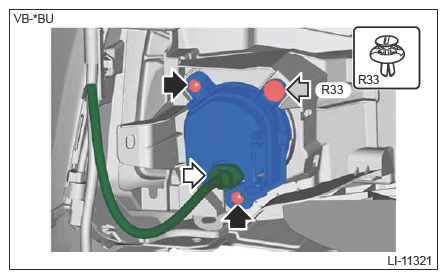

  4. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the screws and clips, and remove the fog light assembly front.
      G14612373Courtesy of SUBARU OF AMERICA, INC.
