Front Speaker: Removal: Tweeter

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

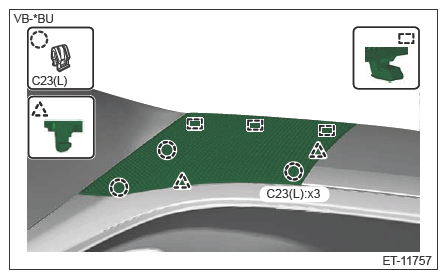

  2. Release the clips and claws, then detach the grille speaker side.
    G14612498Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the speaker assembly tweeter.
    CAUTION:

    Do not touch the cone.

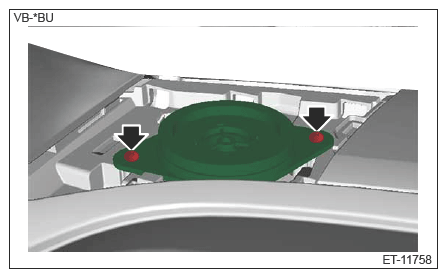

    1. Remove the screws.
      G14612499Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly tweeter.
