Warning Box: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>REMOVAL

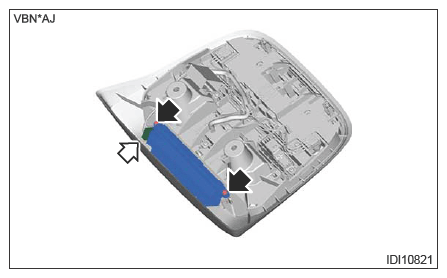

  3. Remove connector and screw, and remove the warning box.
    G14612609Courtesy of SUBARU OF AMERICA, INC.
