DTC B1014: Acc Power

DTC detecting condition:

Voltage failure caused by poor contact of ACC power supply circuit

Trouble symptom:

Interior light may not operate at ACC position.

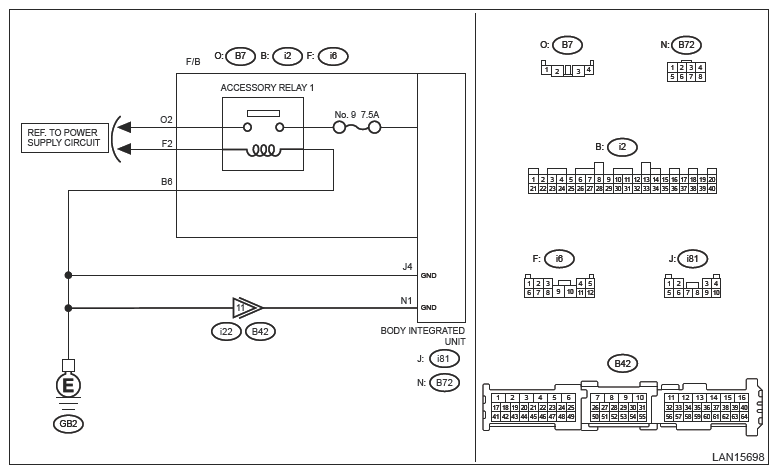

Wiring diagram:

DC power supply circuit Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK DTC  .
   1. Turn the ignition switch to ON.
   2. Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)

   Is DTC B1014 displayed? (Current code)

   Yes  : Go to  2.

   No  : Go to  6.

2. CHECK DTC  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from body integrated unit.
   3. Connect the disconnected connectors.
   4. Wait approx. 2 minutes.
   5. Turn the ignition switch to ON.
   6. Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)

   Is DTC B1014 displayed? (Current code)

   Yes  : Go to  3.

   No  : Go to  6.

3. CHECK FUSE  .
   1. Turn the ignition switch to OFF.
   2. Check the fuse. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT>WIRING DIAGRAM

   Is the check result OK?

   Yes  : Go to  4.

   No  : Replace the defective fuse.

4. CHECK HARNESS  .
   1. Disconnect the connector from F/B.
   2. Using a tester, measure the voltage between the battery and F/B connector.

      Connector & terminal

      (B7) No. 2 (+) - Chassis ground (-):

   Is the voltage 8.5 - 16.5 V?

   Yes  : Go to  5.

   No  : Repair the harness between F/B and M/B.

5. CHECK RELAY  .

   Perform individual inspection of the accessory 1 relay. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>RELAY AND FUSE>INSPECTION

   Is the check result OK?

   Yes  : Replace the body integrated unit. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT

   No  : Replace the relay. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>RELAY AND FUSE

6. CHECK CONNECTOR  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from body integrated unit.

   Is the check result OK?

   Yes  : Repair or replace the poor contact of connector.

   No  : Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

   NOTE:

   In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
