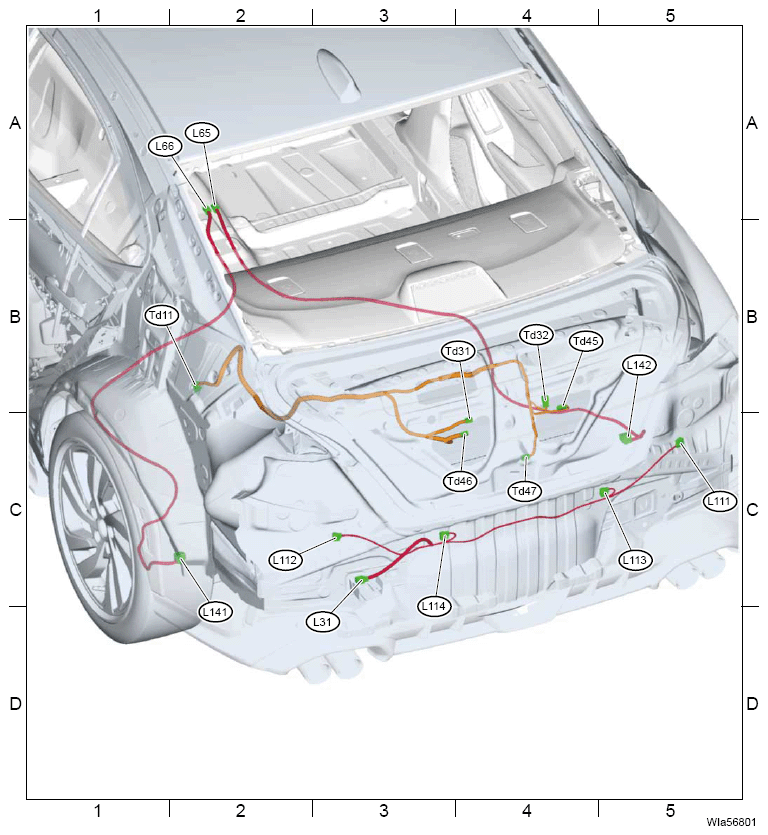

| L31 |
8 |
B |
C-3 |
L67 |
Rear wiring harness LH |
| L65 |
2 |
B |
A-2 |
i45 |
Instrument panel wiring harness |
| L66 |
2 |
|
A-2 |
i46 |
| L111 |
2 |
B |
C-5 |
|
Sonar sensor (right corner) |
| L112 |
2 |
B |
C-3 |
|
Sonar sensor (left corner) |
| L113 |
2 |
B |
C-5 |
|
Sonar sensor (right inner) |
| L114 |
2 |
B |
C-3 |
|
Sonar sensor (left inner) |
| L141 |
2 |
B |
C-2 |
|
Rear brake caliper RH |
| L142 |
2 |
B |
C-5 |
|
Rear brake caliper LH |
| Td11 |
14 |
|
B-2 |
L23 |
Rear wiring harness LH |
| Td31 |
2 |
Br |
C-4 |
|
Trunk opener button |
| Td32 |
4 |
|
B-4 |
|
Rearview camera |
| Td45 |
2 |
|
B-4 |
|
License plate light RH |
| Td46 |
2 |
|
C-4 |
|
License plate light LH |
| Td47 |
3 |
|
C-4 |
|
Trunk lid lock actuator & switch |
