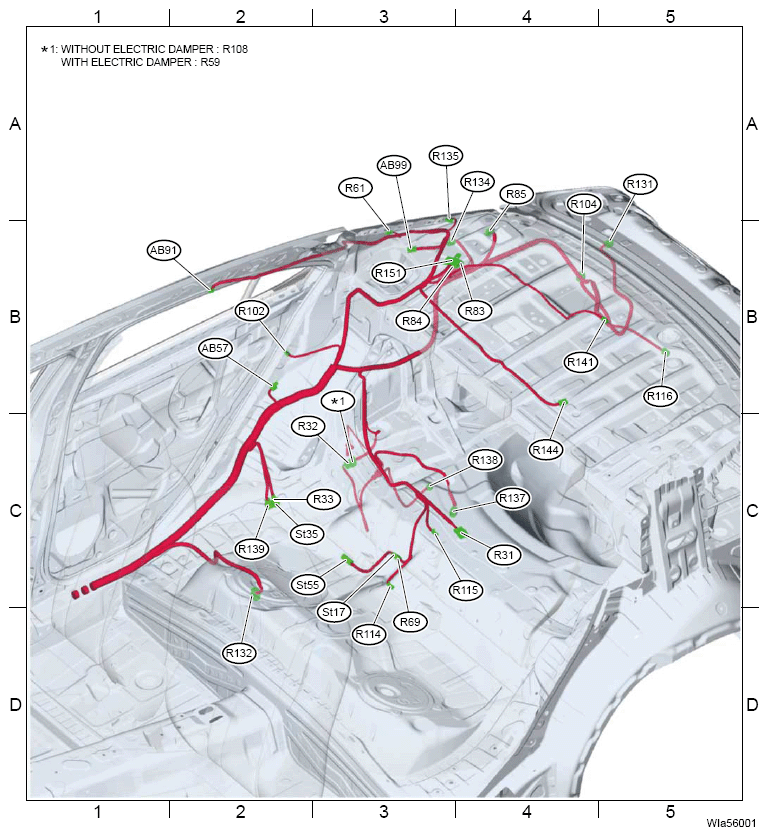

| AB57 |
2 |
Y |
B-2 |
|
Side impact sensor RH (rear wheel house) |
| AB91 |
2 |
B |
B-2 |
|
Curtain airbag module RH |
| AB99 |
4 |
Y |
B-3 |
|
Rear seat belt pretensioner RH |
| R31 |
12 |
|
C-4 |
L70 |
Rear wiring harness LH |
| R32 |
4 |
B |
C-3 |
R59 |
Rear wiring harness RH |
| R33 |
6 |
|
C-2 |
St35 |
Rear seat wiring harness RH |
| R59 |
4 |
B |
C-3 |
R32 |
Electric damper harness |
| R61 |
1 |
|
B-3 |
An8 |
Antenna cord |
| R69 |
2 |
|
C-3 |
St17 |
Rear seat belt switch RH |
| R83 |
14 |
|
B-4 |
|
Rear seat heater control module |
| R84 |
16 |
|
B-3 |
|
| R85 |
6 |
|
B-4 |
|
Fuel pump control module |
| R102 |
4 |
Gr |
B-2 |
|
Rear door switch RH |
| R104 |
10 |
B |
B-4 |
|
Radar sensor RH (slave) |
| R108 |
2 |
Gr |
C-3 |
|
Rear ABS wheel speed sensor RH |
| R114 |
3 |
|
C-3 |
|
Keyless access interior antenna (center) |
| R115 |
3 |
|
C-3 |
|
Keyless access interior antenna (rear) |
| R116 |
2 |
Gr |
B-5 |
|
Keyless access exterior antenna (rear) |
| R131 |
6 |
Gr |
B-5 |
|
Rear combination light RH |
| R132 |
6 |
Gr |
C-2 |
|
Fuel pump ASSY |
| R134 |
4 |
|
B-3 |
|
Fuel lid lock actuator |
| R135 |
1 |
B |
A-3 |
|
Rear defogger |
| R137 |
8 |
Gr |
C-3 |
|
Leak check valve assy |
| R138 |
2 |
B |
C-3 |
|
Damper solenoid valve (RR) |
| R139 |
4 |
|
C-2 |
|
Rear seat cushion heater RH |
| R141 |
2 |
Gr |
B-5 |
|
Trunk room light |
| R144 |
4 |
|
B-4 |
|
Woofer |
| R151 |
5 |
|
B-3 |
|
J/C |
| St17 |
2 |
|
C-3 |
R69 |
Rear wiring harness RH |
| St35 |
6 |
|
C-2 |
R33 |
| St55 |
2 |
|
C-3 |
|
Rear seating switch RH |
