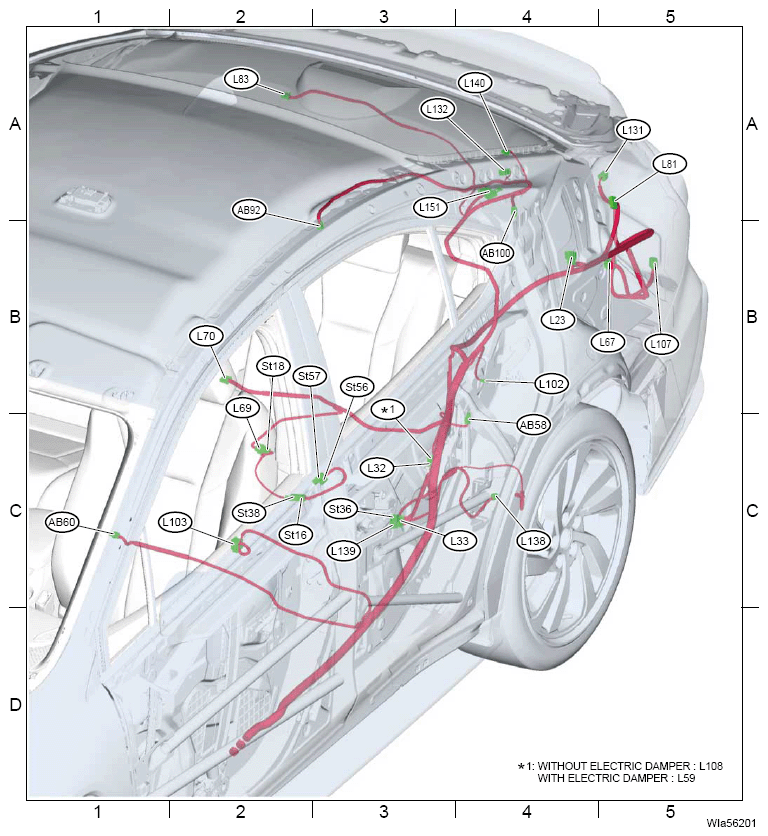

| AB58 |
2 |
Y |
C-4 |
|
Side impact sensor LH (rear wheel house) |
| AB60 |
2 |
B |
C-1 |
|
Side impact sensor (under the rear center seat) |
| AB92 |
2 |
B |
B-3 |
|
Curtain airbag module LH |
| AB100 |
4 |
Y |
A-4 |
|
Rear seat belt pretensioner LH |
| L23 |
14 |
|
B-4 |
Td11 |
Trunk lid cord |
| L32 |
4 |
B |
C-3 |
L59 |
Rear wiring harness LH |
| L33 |
6 |
|
C-3 |
St36 |
Rear seat wiring harness LH |
| L59 |
4 |
B |
C-3 |
L32 |
Electric damper harness |
| L67 |
8 |
B |
B-5 |
L31 |
Sonar sensor cord |
| L69 |
4 |
|
C-2 |
St18 |
Rear seat belt switch LH & center |
| L70 |
12 |
|
B-2 |
R31 |
Rear wiring harness RH |
| L81 |
24 |
|
A-5 |
|
RAB Control Module |
| L83 |
12 |
|
A-2 |
|
Keyless entry control module (without push button start and without TPMS) |
| 12 |
|
A-2 |
|
TPMS & keyless entry control module (without push button start and with TPMS) |
| 12 |
|
A-2 |
|
TPMS Control Module (with push button start and with TPMS) |
| L102 |
4 |
Gr |
B-4 |
|
Rear door switch LH |
| L103 |
4 |
Gr |
C-2 |
|
Fuel sub level sensor |
| L107 |
10 |
B |
B-5 |
|
Radar sensor LH (master) |
| L108 |
2 |
Gr |
C-3 |
|
Rear ABS wheel speed sensor LH |
| L131 |
6 |
Gr |
A-5 |
|
Rear combination light LH |
| L132 |
2 |
|
A-4 |
|
High-mounted stop light |
| L138 |
2 |
B |
C-4 |
|
Damper solenoid valve (RL) |
| L139 |
4 |
|
C-3 |
|
Rear seat cushion heater LH |
| L140 |
1 |
B |
A-4 |
|
Rear defogger |
| L151 |
5 |
|
A-4 |
|
J/C |
| St16 |
4 |
|
C-2 |
St38 |
Rear seat belt switch LH & center |
| St18 |
4 |
|
C-2 |
L69 |
Rear wiring harness LH |
| St36 |
6 |
|
C-3 |
L33 |
| St38 |
4 |
|
C-2 |
St16 |
Rear seating switch wiring harness |
| St56 |
2 |
|
C-3 |
|
Rear seating switch LH |
| St57 |
2 |
|
C-3 |
|
Rear seating switch center |
