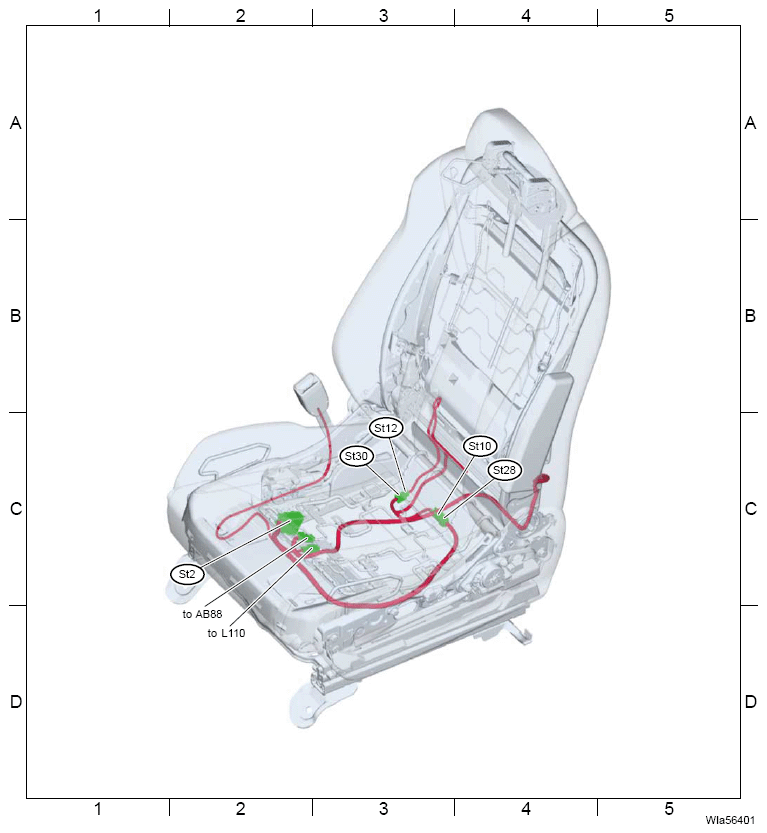

Without Power Seat
| Connector | Connectiong to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| St2 | 16 | (1) | C-2 | L57 | Rear wiring harness LH | ||
| St10 | 4 | (1) | C-3 | St28 | Front seat wiring harness LH | ||
| St12 | 2 | G | C-3 | St30 | Front seat heater LH (seat cushion) | ||
| St28 | 4 | (1) | C-3 | St10 | Front seat heater LH | ||
| St30 | 2 | G | C-3 | St12 | Front seat heater LH (back rest) | ||
|
|||||||
