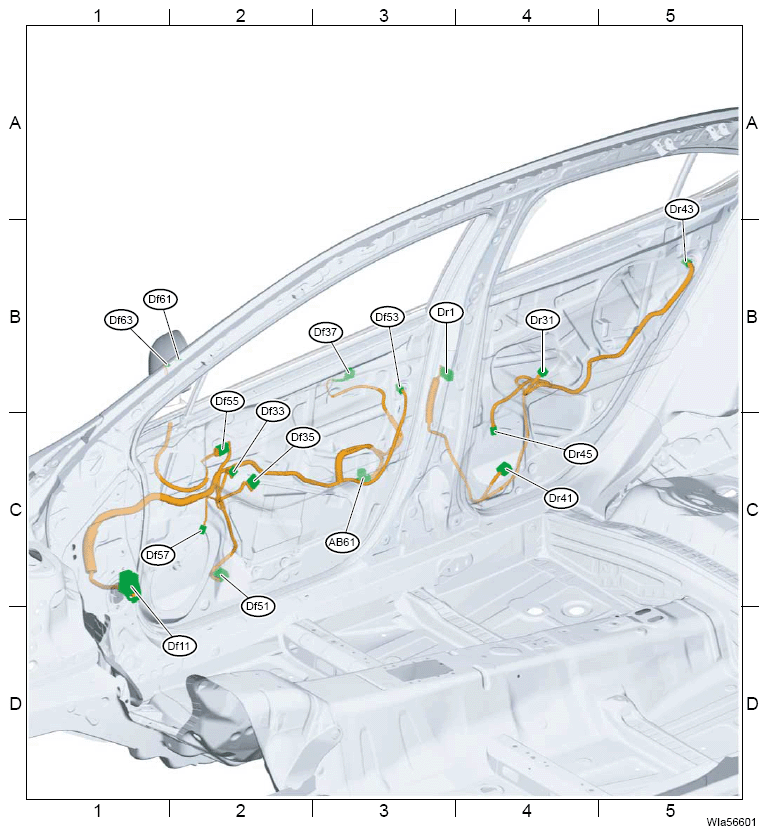

| AB61 |
2 |
Y |
C-3 |
|
Side impact sensor RH (front door) |
| Df11 |
46 |
|
C-1 |
i29 |
Instrument panel wiring harness |
| Df33 |
8 |
|
C-2 |
|
Passenger's door lock switch |
| Df35 |
8 |
|
C-2 |
|
Front power window sub-switch |
| Df37 |
2 |
|
B-3 |
|
Outer handle RH |
| Df51 |
8 |
B |
C-2 |
|
Front regulator and motor ASSY RH |
| Df53 |
10 |
|
B-3 |
|
Front door lock actuator RH |
| Df55 |
16 |
|
C-2 |
|
Outer mirror ASSY RH |
| Df57 |
2 |
|
C-2 |
|
Front door speaker RH |
| Df61 |
2 |
B |
B-2 |
|
OP connector (automatic anti-glare mirror RH) |
| Df63 |
2 |
|
B-1 |
|
OP connector (approach light RH) |
| Dr1 |
12 |
|
B-3 |
R56 |
Rear wiring harness RH |
| Dr31 |
5 |
|
B-4 |
|
Rear power window switch RH (without rear seats off delay function) |
| 8 |
|
B-4 |
|
Rear power window switch RH (with rear seats off delay function) |
| Dr41 |
2 |
B |
C-4 |
|
Rear regulator and motor ASSY RH (without rear seats off delay function) |
| 8 |
B |
C-4 |
|
Rear regulator and motor ASSY RH (with rear seats off delay function) |
| Dr43 |
10 |
|
B-5 |
|
Rear door lock actuator RH |
| Dr45 |
2 |
|
C-4 |
|
Rear door speaker RH |
