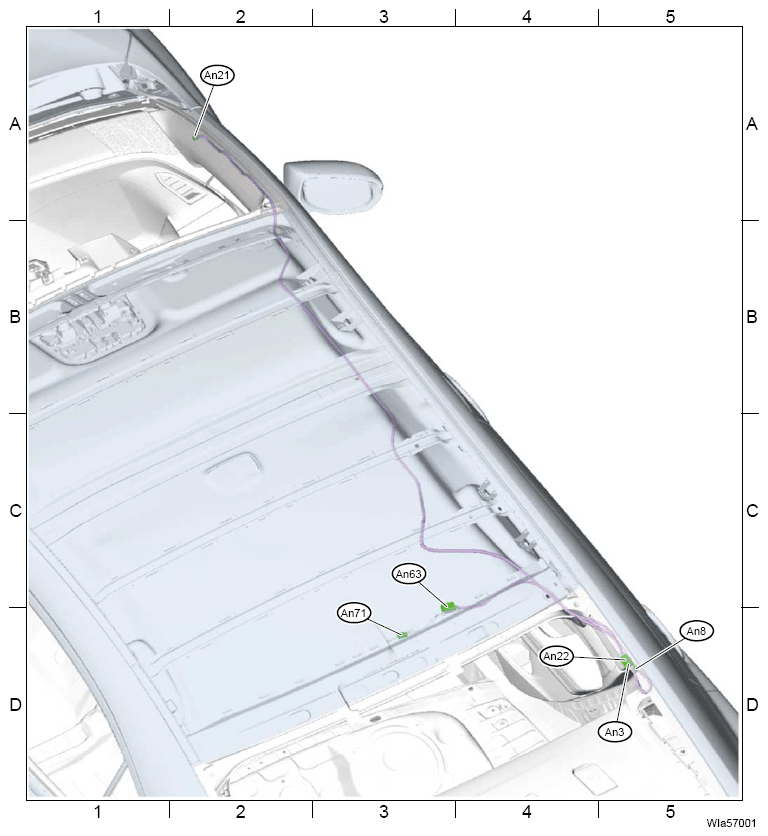

Antenna Cord: Location: Rear
| Connector | Connectiong to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| An3 | 3 | (1) | D-5 | An22 | Antenna cord | ||
| An8 | 1 | (1) | D-5 | R61 | Rear wiring harness RH | ||
| An21 | 3 | (1) | A-2 | An1 | Antenna cord (without telematics) | ||
| 3 | L | A-2 | An1 | Antenna cord (with telematics) | |||
| An22 | 3 | (1) | D-5 | An3 | Antenna cord (without telematics) | ||
| 3 | L | D-5 | An3 | Antenna cord (with telematics) | |||
| An63 | 3 | (1) | C-3 | Antenna | |||
| An71 | 1 | (1) | D-3 | ||||
|
|||||||
