Reverse Automatic Braking: Wiring Diagram

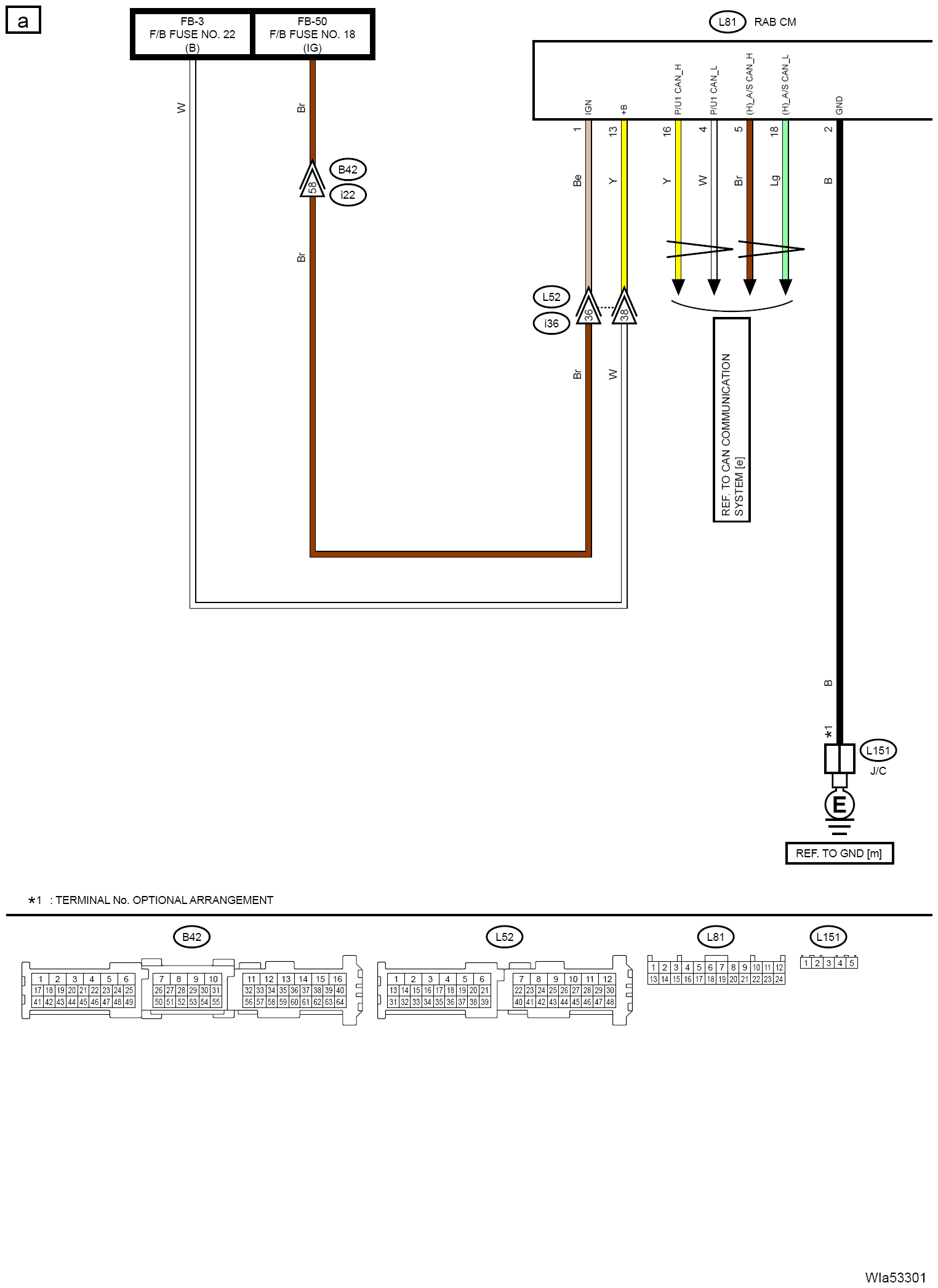

G14613516Courtesy of SUBARU OF AMERICA, INC.

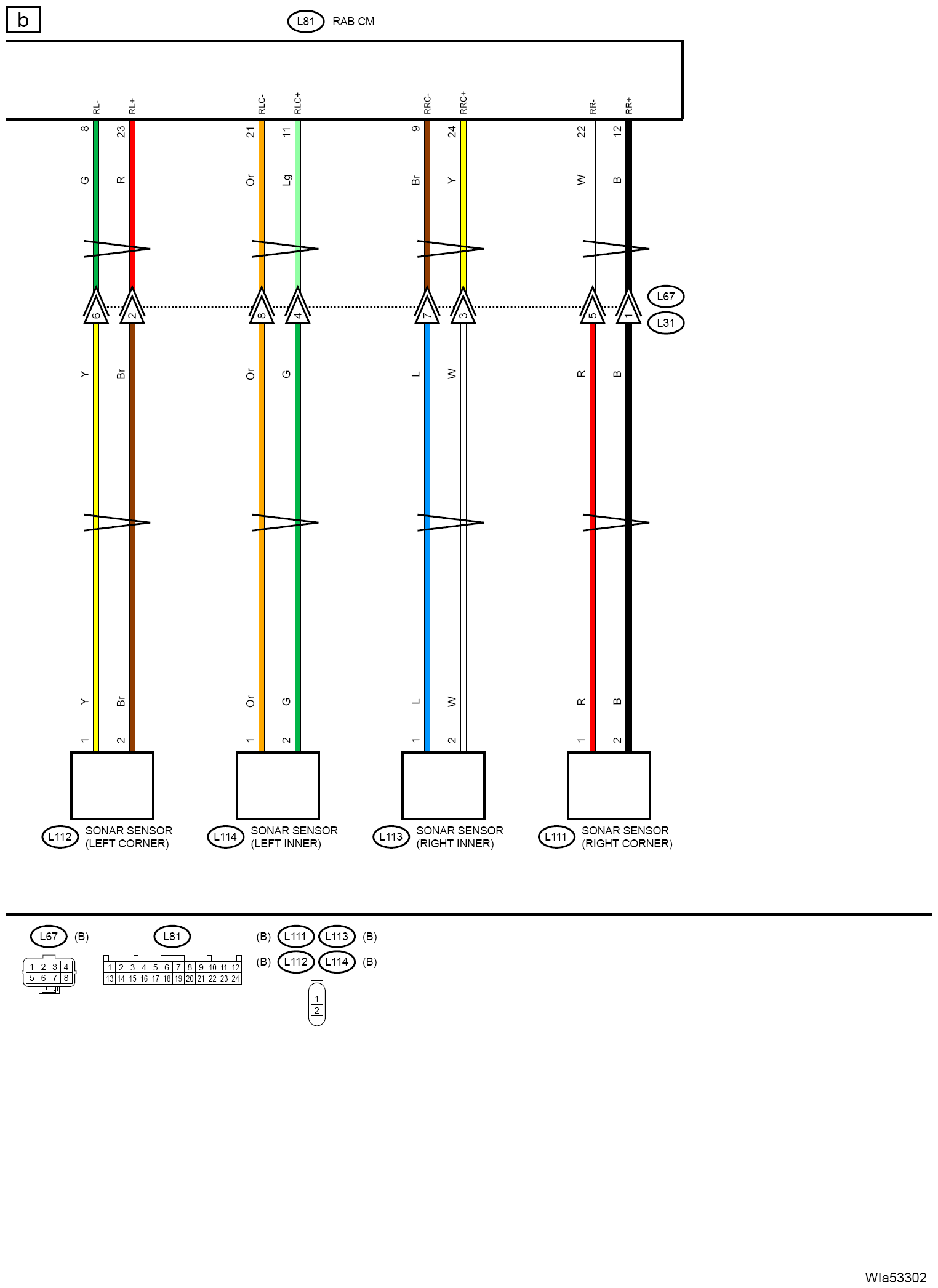

G14613517Courtesy of SUBARU OF AMERICA, INC.
