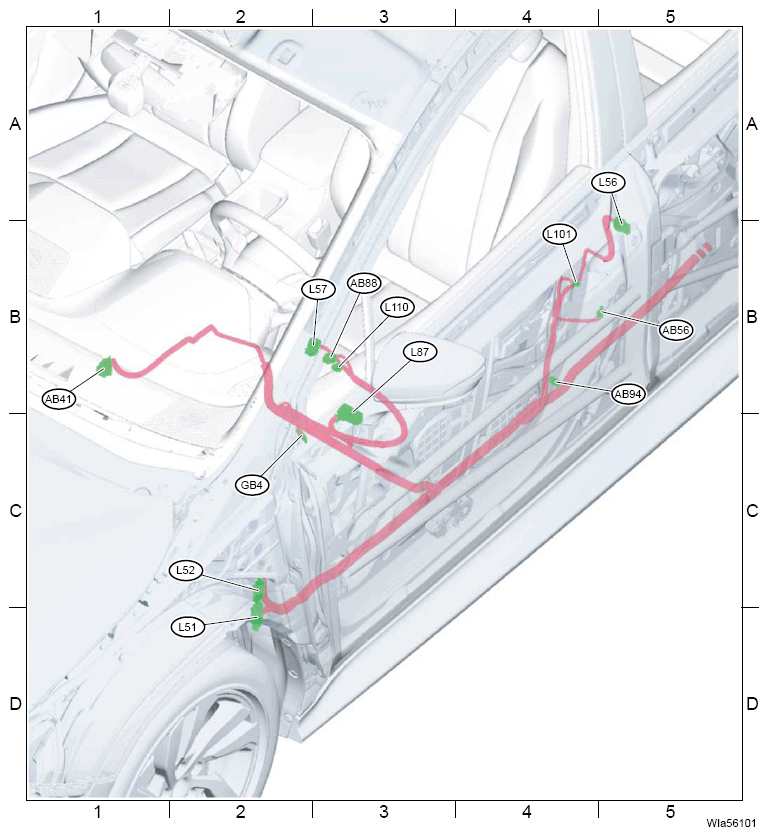

Rear Wiring Harness LH: Location: Front
| Connector | Connectiong to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| AB41 | 36 | Y | B-1 | Airbag control module | |||
| AB56 | 2 | Y | B-5 | Side impact sensor LH (center pillar) | |||
| AB88 | 2 | (1) | B-3 | Side airbag module LH | |||
| AB94 | 4 | Y | B-4 | Front seat belt pretensioner LH | |||
| L51 | 64 | (1) | D-2 | i35 | Instrument panel wiring harness | ||
| L52 | 48 | (1) | C-2 | i36 | |||
| L56 | 12 | (1) | B-5 | Dr2 | Rear door cord LH | ||
| L57 | 16 | (1) | B-3 | St2 | Front seat wiring harness LH | ||
| L87 | 32 | L | B-3 | Damper control module | |||
| L101 | 4 | Gr | B-4 | Front door switch LH | |||
| L110 | 2 | (1) | B-3 | Front seat belt switch LH | |||
| GB4 | - | - | C-2 | - | |||
|
|||||||
