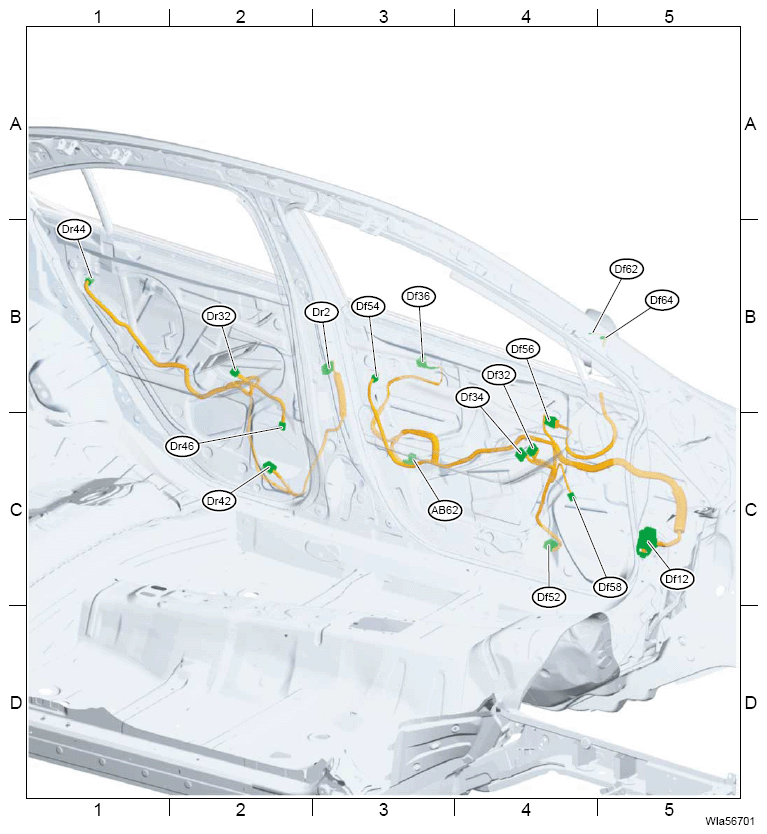

| AB62 |
2 |
Y |
C-3 |
|
Side impact sensor LH (front door) |
| Df12 |
46 |
|
C-5 |
i30 |
Instrument panel wiring harness |
| Df32 |
24 |
|
C-4 |
|
Remote control mirror switch |
| Df34 |
16 |
B |
C-4 |
|
Power window main switch |
| Df36 |
2 |
|
B-3 |
|
Outer handle LH |
| Df52 |
8 |
B |
C-4 |
|
Front regulator and motor ASSY LH |
| Df54 |
10 |
|
B-3 |
|
Front door lock actuator LH |
| Df56 |
16 |
|
C-4 |
|
Outer mirror ASSY LH |
| Df58 |
2 |
|
C-4 |
|
Front door speaker LH |
| Df62 |
2 |
B |
B-4 |
|
OP connector (automatic anti-glare mirror LH) |
| Df64 |
2 |
|
B-5 |
|
OP connector (approach light LH) |
| Dr2 |
12 |
|
B-3 |
L56 |
Rear wiring harness LH |
| Dr32 |
5 |
|
B-2 |
|
Rear power window switch LH (without rear seats off delay function) |
| 8 |
|
B-2 |
|
Rear power window switch LH (with rear seats off delay function) |
| Dr42 |
2 |
B |
C-2 |
|
Rear regulator and motor ASSY LH (without rear seats off delay function) |
| 8 |
B |
C-2 |
|
Rear regulator and motor ASSY LH (with rear seats off delay function) |
| Dr44 |
10 |
|
B-1 |
|
Rear door lock actuator LH |
| Dr46 |
2 |
|
C-2 |
|
Rear door speaker LH |
