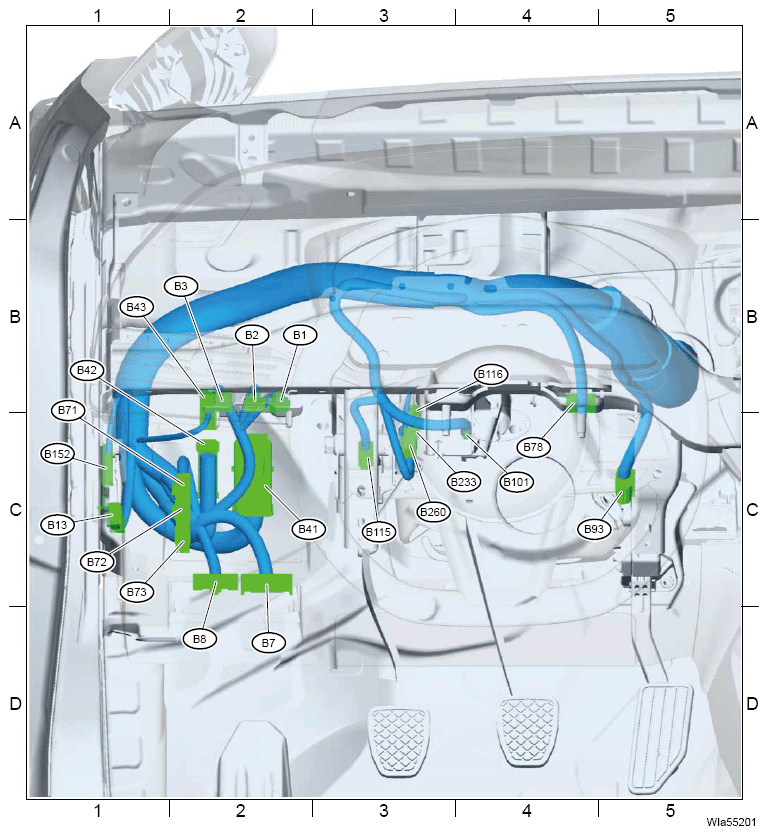

Bulkhead Wiring Harness (In Compartment): Location
| Connector | Connectiong to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| B1 | 4 | (1) | B-2 | F/B | |||
| B2 | 4 | B | B-2 | ||||
| B3 | 20 | (1) | B-2 | ||||
| B7 | 4 | (1) | C-2 | ||||
| B8 | 8 | Br | C-2 | ||||
| B13 | 2 | (1) | C-1 | Power window circuit breaker | |||
| B41 | 86 | (1) | C-2 | i21 | Instrument panel wiring harness | ||
| B42 | 64 | (1) | C-2 | i22 | |||
| B43 | 6 | (1) | B-2 | i23 | |||
| B71 | 12 | B | C-2 | Body integrated unit | |||
| B72 | 8 | (1) | C-2 | ||||
| B73 | 20 | Gr | C-2 | ||||
| B78 | 16 | (1) | B-4 | Auto headlight beam leveler control module | |||
| B93 | 6 | B | C-5 | Accelerator pedal position sensor | |||
| B101 | 5 | (1) | C-4 | Stop light & brake switch | |||
| B115 | 2 | L | C-3 | Clutch start switch | |||
| B116 | 2 | (1) | B-3 | ||||
| B152 | 5 | (1) | C-1 | J/C | |||
| B233 | 10 | (1) | C-3 | B260 | Bulkhead wiring harness | ||
| B260 | 10 | (1) | C-3 | B233 | Clutch sensor wire | ||
|
|||||||
