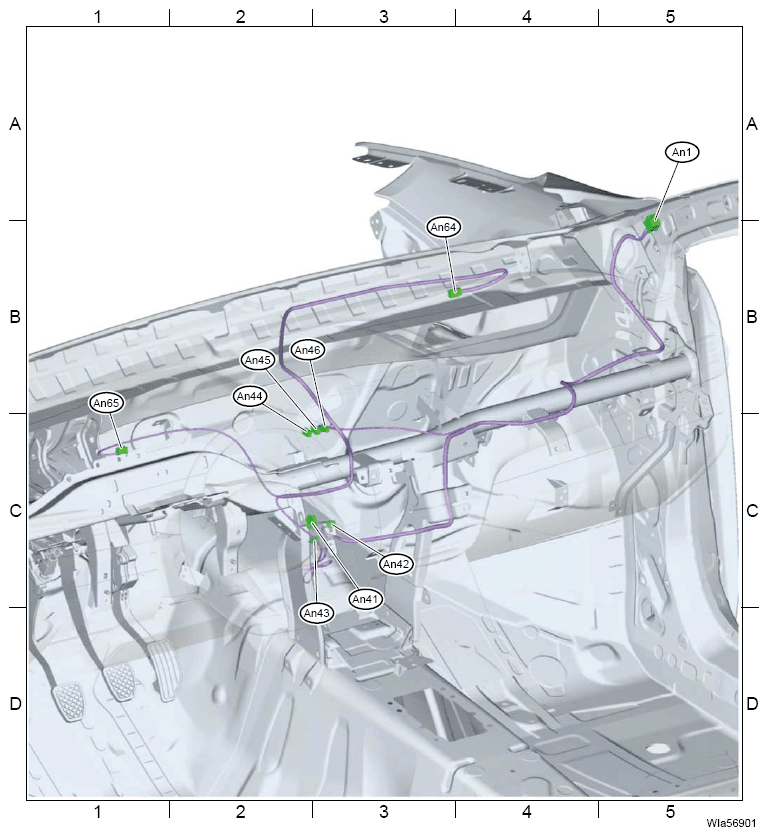

Antenna Cord: Location: Front
| Connector | Connectiong to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | Description | ||
| An1 | 3 | (1) | A-5 | An21 | Antenna cord (without telematics) | ||
| 3 | L | A-5 | An21 | Antenna cord (with telematics) | |||
| An41 | 2 | Gr | C-2 | Cockpit control module | |||
| An42 | 1 | L | C-3 | ||||
| An43 | 1 | Gr | C-3 | ||||
| An44 | 1 | Gr | C-2 | Data communication module | |||
| An45 | 1 | G | C-3 | ||||
| An46 | 1 | Br | C-3 | ||||
| An64 | 1 | G | B-3 | GPS antenna (without navigation) | |||
| 3 | (1) | B-3 | GPS antenna (with navigation) | ||||
| An65 | 1 | B | C-1 | Tel sub antenna | |||
|
|||||||
