Rear Drive Shaft: Disassembly

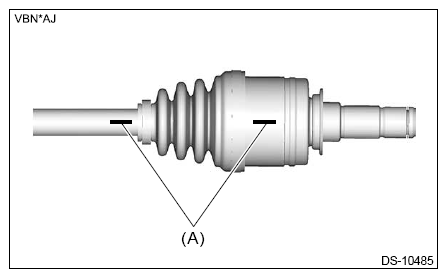

Place alignment marks (A) on the shaft assembly and outer race.

Courtesy of SUBARU OF AMERICA, INC.

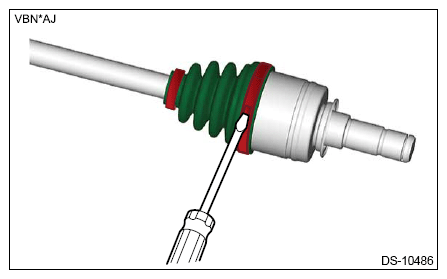

Remove the boot band (large) and boot band (small) and move the boot (IN side) to the central side of the shaft assembly.
CAUTION:
Be careful not to damage the boot (IN side).

Courtesy of SUBARU OF AMERICA, INC.
Remove the circlip, and remove the outer race.
CAUTION:
Be careful not to drop the ball.

Courtesy of SUBARU OF AMERICA, INC.
Remove the ball.
CAUTION:
Be careful not to lose the ball.

Courtesy of SUBARU OF AMERICA, INC.
Rotate the cage by a half pitch to shift to the central side of the shaft assembly.

Courtesy of SUBARU OF AMERICA, INC.
Wipe off the grease and place alignment marks (A) on the inner race and shaft assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring, and remove the inner race.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cage.
Remove the boot (IN side).
CAUTION:
Be sure to wrap the shaft assembly splines with vinyl tape, etc. to protect the boot (IN side) from scratches.
Remove the boot band (large) and boot band (small) and remove the boot (OUT side).
CAUTION:
Be sure to wrap the shaft assembly splines with vinyl tape, etc. to protect the boot (OUT side) from scratches.

NOTE:
OUT side joint (Rzeppa constant velocity joint) cannot be disassembled.

Courtesy of SUBARU OF AMERICA, INC.
Clean each part.
CAUTION:
Be careful not to erase the alignment marks.
