Front Drive Shaft: Disassembly

NOTE:

OUT side joint (Rzeppa constant velocity joint) and boot (OUT side) cannot be disassembled.

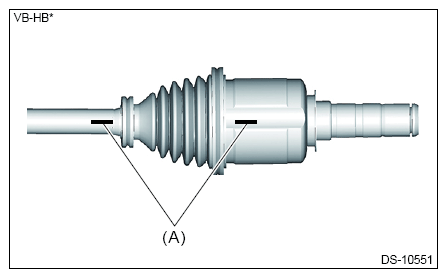

  1. Place alignment marks (A) on the shaft assembly and outer race.
    G14602028Courtesy of SUBARU OF AMERICA, INC.

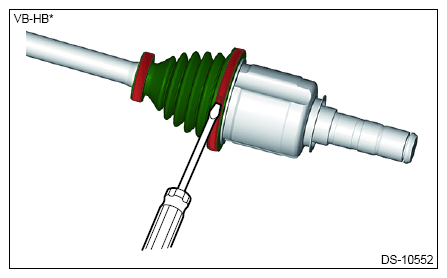

  2. Remove the boot band (large) and boot band (small) and move the boot (IN side) to the central side of the shaft assembly.
    CAUTION:

    Be careful not to damage the boot (IN side).

    G14602029Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the circlip, and remove the outer race.
    CAUTION:

    Be careful not to drop the bearing.

    G14602030Courtesy of SUBARU OF AMERICA, INC.

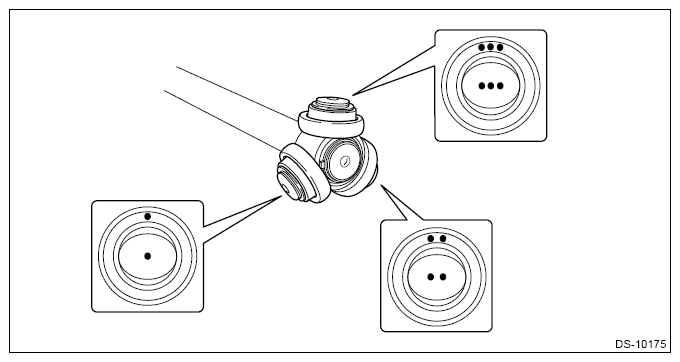

  4. Remove the grease and place identification marks on the bearing and trunnion.
    G13199630Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bearing.
  6. Wipe off the grease and place alignment marks (A) on the trunnion and shaft assembly.
    G14602032Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the snap ring and remove the trunnion.
    G14602033Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the boot (IN side).
    CAUTION:

    Be sure to wrap the shaft assembly splines with vinyl tape, etc. to protect the boot (IN side) from scratches.

  9. Remove the O-ring from the shaft assembly.
  10. Clean each part.
    CAUTION:

    Be careful not to erase the identification and alignment marks.
