Check Lining Thickness

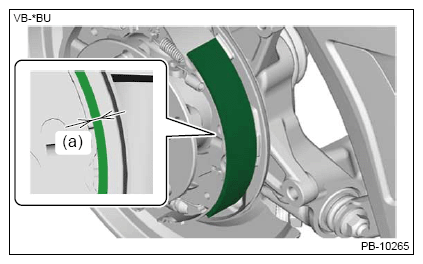

Check the lining thickness (a).

Courtesy of SUBARU OF AMERICA, INC.

	Value in a brand-new state	Wear limit
Lining thickness	3.5 mm (0.14 in)	1.5 mm (0.06 in)

If the wear limit is exceeded in the inspection, replace the brake shoe.
CAUTION:
Replace the right and left brake shoe as a set.
