Except For The Electronic Parking Brake Model

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Release the parking brake.
  3. Remove the disc brake assembly rear.

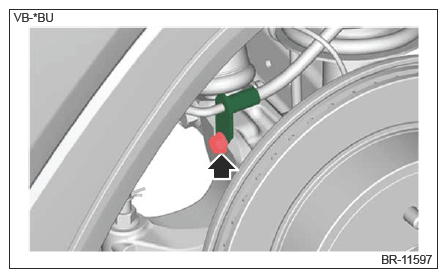

    1. Remove the bolts and then remove the brake hose bracket.
      G14602184Courtesy of SUBARU OF AMERICA, INC.

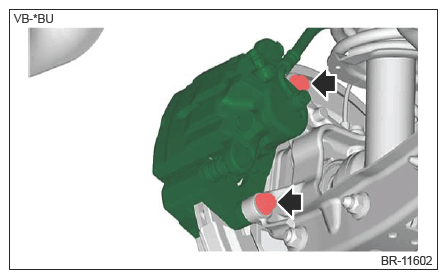

    2. Remove the mounting bolt, and remove the disc brake assembly rear.
      G14602197Courtesy of SUBARU OF AMERICA, INC.

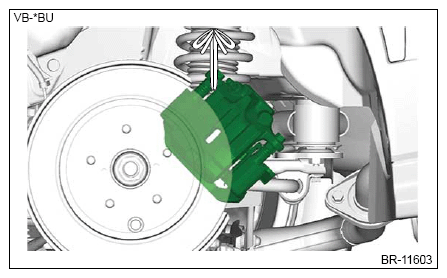

    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly rear from the shock absorber assembly rear.
    G14602198Courtesy of SUBARU OF AMERICA, INC.
  4. Make markings (a) on the brake disc rear and the rear hub unit bearing.
    NOTE:

    Marking is not necessary if the brake disc rear is replaced with a new part.

    G14602199Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the brake disc rear.
    NOTE:

    When the brake disc rear is difficult to be removed, follow the procedure below to remove it.

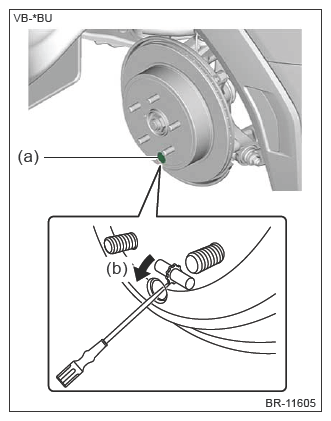

    1. Remove the plug (a) and insert a flat tip screwdriver to turn the adjuster assembly in the direction (b) where it is shortened.
      G14602200Courtesy of SUBARU OF AMERICA, INC.

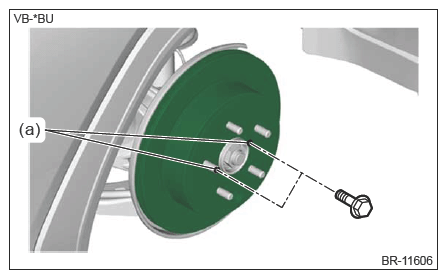

    2. Screw in 8 mm (0.31 in) bolt to the threaded part (a), and remove the brake disc rear.
      G14602201Courtesy of SUBARU OF AMERICA, INC.
