Electronic Parking Brake Model

  1. Release the parking brake.
  2. Execute the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  5. Remove the disc brake assembly rear.
    1. Remove the bolts and then remove the brake hose bracket.
    2. Remove the connector and mounting bolt, and remove the disc brake assembly rear.

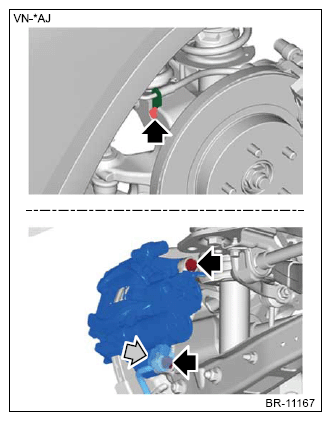

      G14602202Courtesy of SUBARU OF AMERICA, INC.
    3. Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly rear from the shock absorber assembly rear.

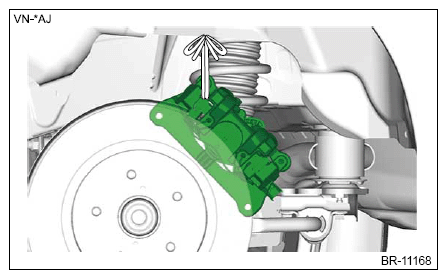

      G14602203Courtesy of SUBARU OF AMERICA, INC.
  6. Make markings (a) on the brake disc rear and the rear hub unit bearing.
    NOTE:

    Marking is not necessary if the brake disc rear is replaced with a new part.

    G14602204Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the brake disc rear.
    NOTE:

    When the brake disc rear is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part of the brake disc rear (a), and remove the brake disc rear.

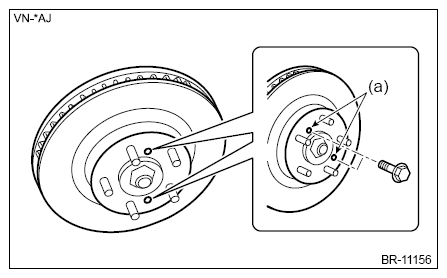

    G14602162Courtesy of SUBARU OF AMERICA, INC.
