Electronic Parking Brake Model

NOTE:
  • Before installation, remove mud and foreign matter from the disc brake assembly rear.
  • Check that the ground terminal is disconnected from the battery sensor.
  1. Check the brake disc rear. Ref. to BRAKE>REAR DISC ROTOR>INSPECTION .
  2. Install the brake disc rear.
    NOTE:

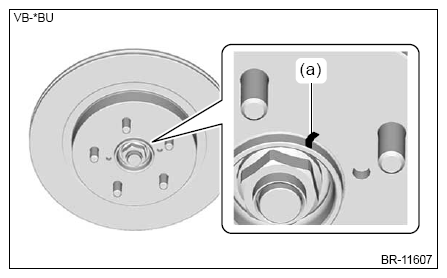

    Install so that the markings (a) of the brake disc rear and the rear hub unit bearing are aligned with each other.

    G14602204Courtesy of SUBARU OF AMERICA, INC.
  3. Use new mounting bolts to install the disc brake assembly rear.

    Tightening torque:

    73 N.m (7.4 kgf-m, 53.8 ft-lb)

  4. Connect the connector.
  5. Install the brake hose bracket.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  7. Exit the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  8. After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.
