Except For The Electronic Parking Brake Model

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the pad disc brake rear.
    1. Remove the bolts and then remove the brake hose bracket.
      G14602184Courtesy of SUBARU OF AMERICA, INC.

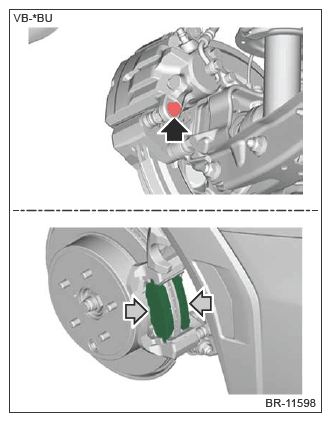

    2. Remove the lower bolt.
    3. Raise the caliper body and remove the pad disc brake rear.
    NOTE:

    Do not disconnect the brake hose from the caliper body.

    G14602185Courtesy of SUBARU OF AMERICA, INC.

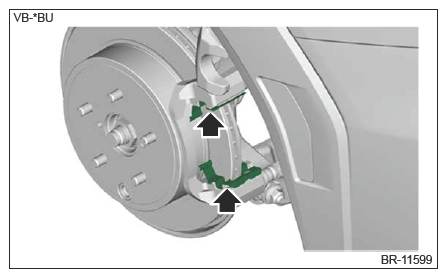

  3. Remove the pad clip.
    G14602186Courtesy of SUBARU OF AMERICA, INC.
