Brake Pad

Check the thickness of the pad disc brake rear.

NOTE:

When replacing the pad disc brake rear, always replace the pads of both wheels and both sides as a set.
Replace pad clips if they are twisted or worn.
Replace the pad disc brake rear if there is oil or grease on it.
Pad wear indicators are installed on the pad disc brake rear inner, and a squeaking sound is heard if the brake pad is worn to the limit.

Courtesy of SUBARU OF AMERICA, INC.

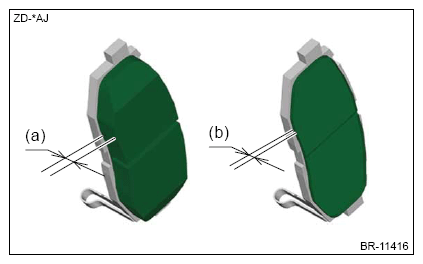

	Value in a brand-new state (a)	Wear limit (b)
Brake pad thickness	11 mm (0.43 in)	1.5 mm (0.059 in)

If the wear limit is exceeded in the inspection, replace the pad disc brake rear.
