Brake Vacuum Hose & Pipe

Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

Remove the vacuum hose COMPL and the vacuum pipe COMPL.

NOTE:

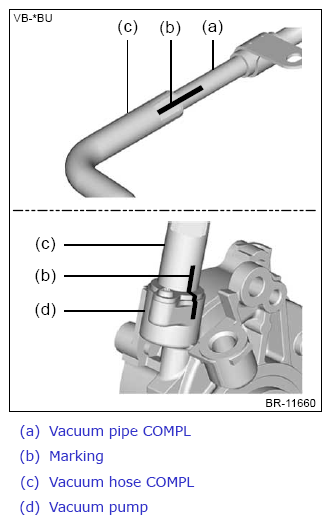

Perform marking of the vacuum hose COMPL on the vacuum pump side as shown in the figure below.

Courtesy of SUBARU OF AMERICA, INC.

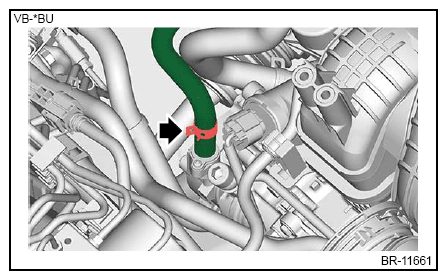

Remove the clamp and disconnect the vacuum hose COMPL from the vacuum pump.

Courtesy of SUBARU OF AMERICA, INC.

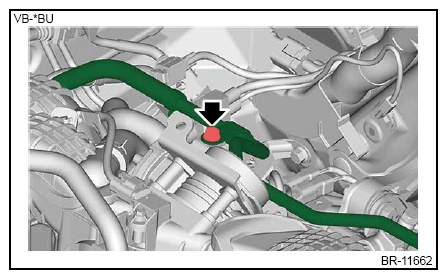

Remove the bolt and disconnect the pipe clamp from the engine rear hanger.

Courtesy of SUBARU OF AMERICA, INC.

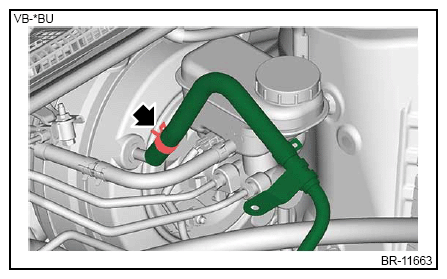

Remove the clamp and disconnect the vacuum hose COMPL from the vacuum booster assembly.

Courtesy of SUBARU OF AMERICA, INC.

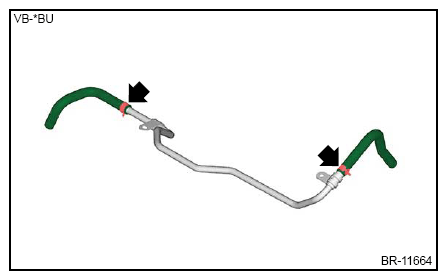

Remove the clamp and disconnect the vacuum hose COMPL from the vacuum pipe COMPL.

NOTE:

Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
