Brake Vacuum Hose & Pipe

Install the vacuum hose COMPL and the vacuum pipe COMPL.
CAUTION:

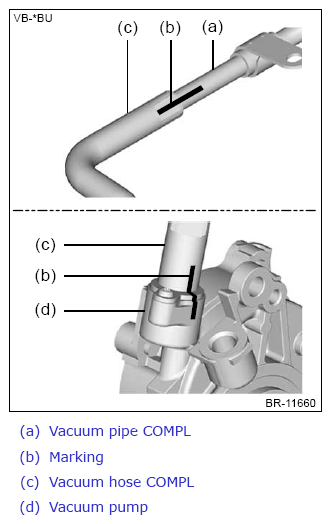

Install the vacuum hose COMPL on the vacuum pump side so that the marks are aligned.

Courtesy of SUBARU OF AMERICA, INC.
1. Install the vacuum hose COMPL to the vacuum pump.
2. Install the vacuum hose COMPL to the vacuum booster assembly.
3. Install the pipe clamp to the engine rear hanger.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)
4. Install the vacuum hose COMPL to the vacuum pump.
  Clearance:

  Clearance between vacuum hose COMPL and surrounding parts: 15 mm (0.59 in) or more
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
