Rear Brake Hose

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Disconnect the pipe center brake rear using a flare nut wrench.
    G14602294Courtesy of SUBARU OF AMERICA, INC.

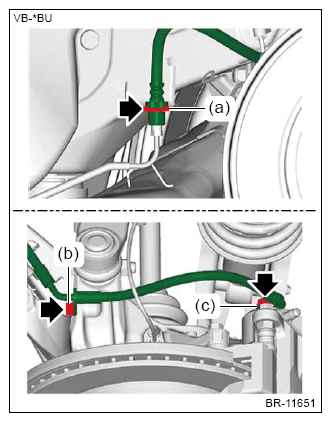

  3. Remove the clamp brake hose (a), brake hose bracket bolt (b) and union bolt (c), and remove brake hose rear.
    • Except for electric brake booster model
    G14602295Courtesy of SUBARU OF AMERICA, INC.

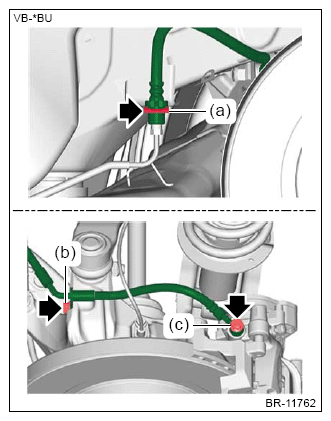

    • Electric brake booster model
    G14602296Courtesy of SUBARU OF AMERICA, INC.
