Front Brake Hose

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Separate pipe assembly front ABS using a flare nut wrench.
    G14602292Courtesy of SUBARU OF AMERICA, INC.

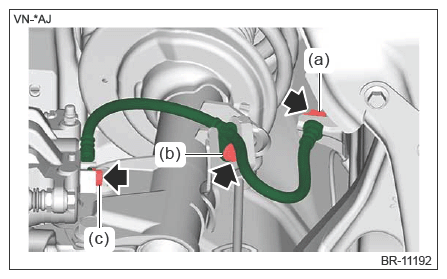

  3. Remove the clamp brake hose (a), brake hose bracket bolt (b) and union bolt (c), and remove brake hose front.
    G14602293Courtesy of SUBARU OF AMERICA, INC.
