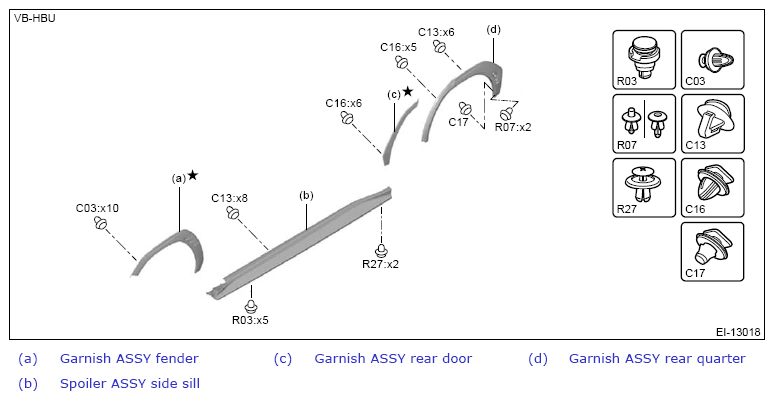

Side Garnish & Side Spoiler: Removal

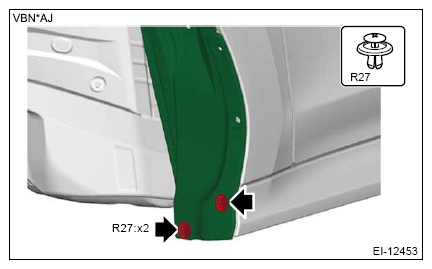

Remove the clips, and turn over the mud guard front.

Courtesy of SUBARU OF AMERICA, INC.
Release the clips, and remove the spoiler assembly side sill and the garnish assembly rear quarter.
NOTE:
Remove with the door open to prevent door interference.

Courtesy of SUBARU OF AMERICA, INC.
Remove the garnish assembly fender and the garnish assembly rear door.
1. Attach the protective tape to the periphery of the garnish.
2. Heat the garnish section for 3 - 5 minutes to 40°C - 60°C (104°F - 140°F) using a heat light or a drier.
  CAUTION:
  Be careful not to burn yourself.
3. Separate the bonded part of double sided tape with a nylon cord or equivalent.
4. Release the clips and remove the garnish assembly fender and the garnish assembly rear door.
