Bumper Bracket

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL>BUMPER FACE

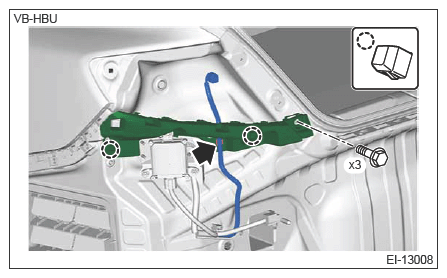

  3. Remove the bracket corner rear.
    1. Remove the bolt and release the claws.
    2. Remove the harness clamp, and then remove the bracket corner rear.
      G14612958Courtesy of SUBARU OF AMERICA, INC.

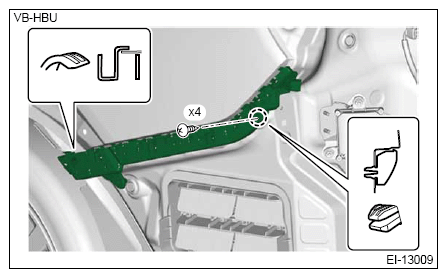

  4. Remove the bracket side rear.
    1. Remove the screws.
    2. Release the claws, and then remove the bracket side rear.
      G14612959Courtesy of SUBARU OF AMERICA, INC.

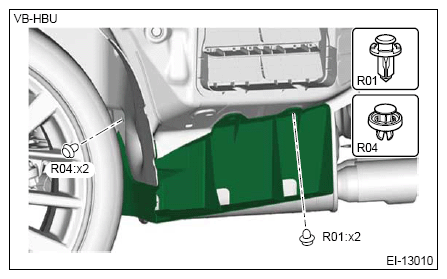

  5. Remove the clips, and remove the cover side LWR.
    G14612960Courtesy of SUBARU OF AMERICA, INC.
