Bumper Beam

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL>BUMPER FACE
  3. Remove the bumper beam COMPL rear.
    1. Remove the harness clamp.

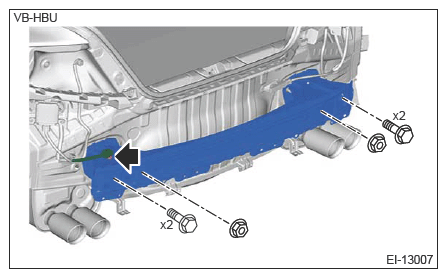

    2. Remove the bolts and nuts, and remove the bumper beam COMPL rear.
      G14612957Courtesy of SUBARU OF AMERICA, INC.
