Rear Antenna

NOTE:

Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the light assembly rear combination. Ref. to LIGHTING SYSTEM>REAR COMBINATION LIGHT ASSEMBLY>REMOVAL
Remove the bumper face rear. Ref. to EXTERIOR/INTERIOR TRIM>REAR BUMPER>REMOVAL
Remove the rear antenna assembly exterior.

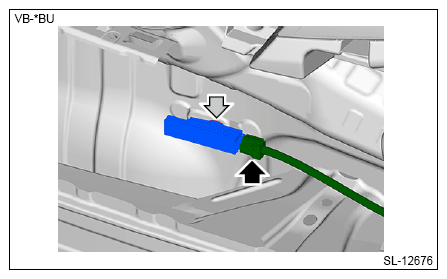

1. Disconnect the connector.
2. Release the clips, and remove the rear antenna assembly exterior.

Courtesy of SUBARU OF AMERICA, INC.
