Rear Door Glass: Removal

  1. Operate the switch power window to move the glass assembly rear door to the lowest position.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  3. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR
  4. Remove the sealing cover door rear. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>REAR SEALING COVER
  5. Remove the glass assembly rear door.
    CAUTION:

    Do not damage the sash or the sash molding while removing.

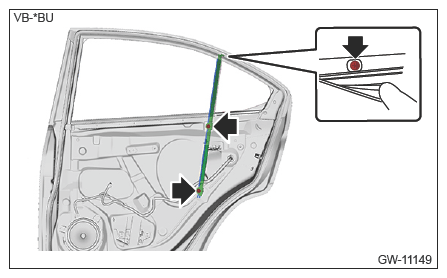

    1. Remove the bolts and screws, and then remove the running channel rear door and the sash assembly rear door partition.
      G14612567Courtesy of SUBARU OF AMERICA, INC.

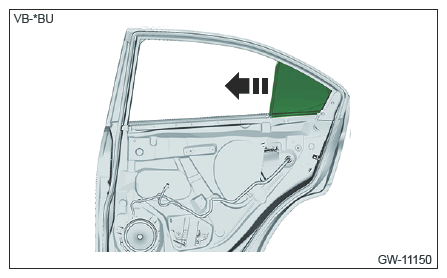

    2. Remove the glass rear door partition.
      G14612568Courtesy of SUBARU OF AMERICA, INC.

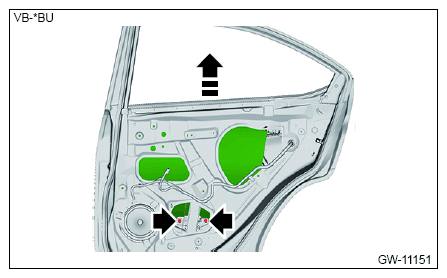

    3. Remove the bolts, and remove the glass assembly rear door.
      G14612569Courtesy of SUBARU OF AMERICA, INC.
