Front Door Partition Glass

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the glass assembly front door. Ref. to GLASS/WINDOWS/MIRRORS>FRONT DOOR GLASS>REMOVAL>FRONT DOOR GLASS
  3. Remove the glass front door partition.
    CAUTION:

    Do not damage the sash or the sash molding while removing.

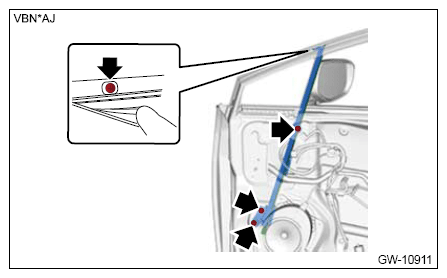

    1. Remove the bolts and screws, and then remove the running channel front door and the sash assembly partition.
      G14612543Courtesy of SUBARU OF AMERICA, INC.

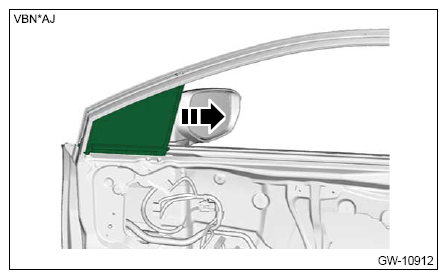

    2. Remove the glass front door partition.
      G14612544Courtesy of SUBARU OF AMERICA, INC.
