Glove Box Light

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID
  3. Remove the light pocket cover.
    NOTE:

    When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

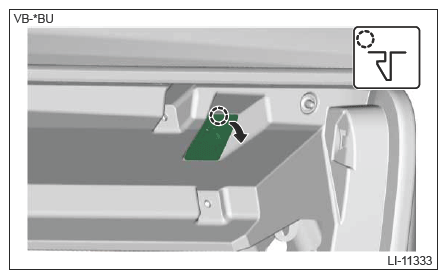

    1. Release the claws.
      G14612401Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the light pocket cover.

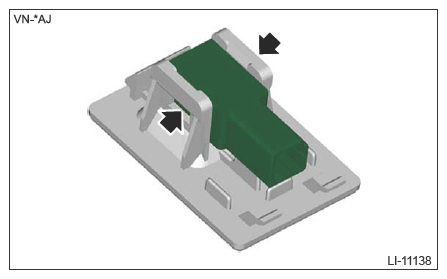

  4. Release the claws, and remove the light pocket.
    G14612402Courtesy of SUBARU OF AMERICA, INC.
