Trunk Room Trim: Removal

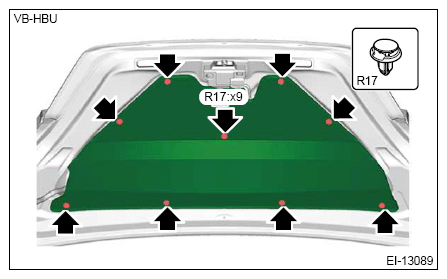

  1. Remove the clips, and remove the trim panel trunk lid.
    G14613064Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the mat trunk, spacer center and spacer rear floor side.

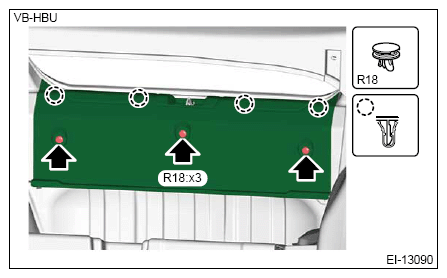

  3. Release the clips and claws, and remove the trim panel trunk rear.
    G14613065Courtesy of SUBARU OF AMERICA, INC.

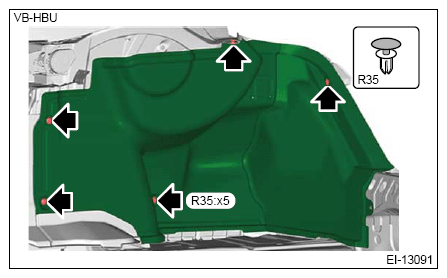

  4. Release the clips and remove the trunk trim panel side.
    G14613066Courtesy of SUBARU OF AMERICA, INC.
