Rear Spoiler: Removal

  1. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL
  2. Remove the spoiler assembly rear.

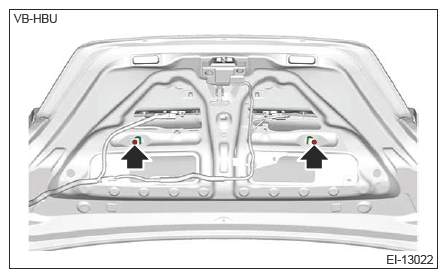

    1. Remove the bolt.
      G14612978Courtesy of SUBARU OF AMERICA, INC.

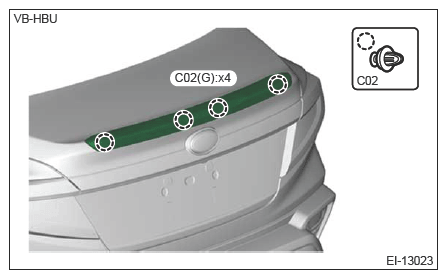

    2. Release the clips, and remove the spoiler assembly rear.
      G14612979Courtesy of SUBARU OF AMERICA, INC.
