Rear Bumper: Disassembly

  1. Remove the reflex reflector. Ref. to LIGHTING SYSTEM>REFLEX REFLECTOR>REMOVAL
  2. Remove the sonar sensor assembly and the sonar bumper cable. Ref. to REVERSE AUTOMATIC BRAKING>SENSOR AND HARNESS>REMOVAL

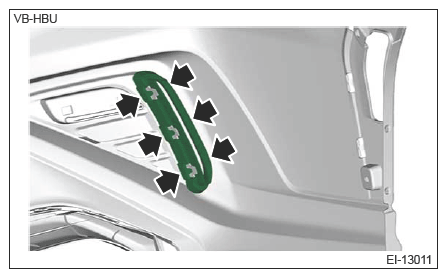

  3. Release the claws, and remove the cover duct.
    G14612961Courtesy of SUBARU OF AMERICA, INC.

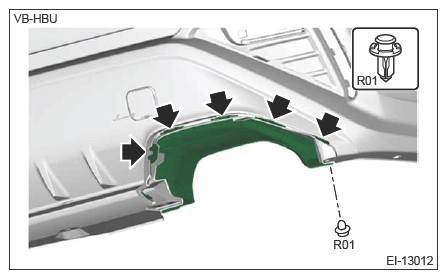

  4. Remove the clips, and remove the cover muffler.
    G14612962Courtesy of SUBARU OF AMERICA, INC.

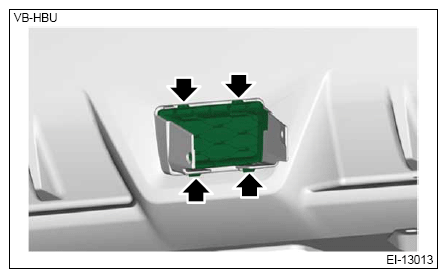

  5. Release the claws, and then remove the cover fog rear.
    G14612963Courtesy of SUBARU OF AMERICA, INC.
