Mud Guard: Removal
- Lift up the vehicle.
- Remove the wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL
- Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
- Remove the spoiler assembly side sill. (When the plate air flap rear is removed) Ref. to EXTERIOR/INTERIOR TRIM>SIDE GARNISH & SIDE SPOILER>REMOVAL

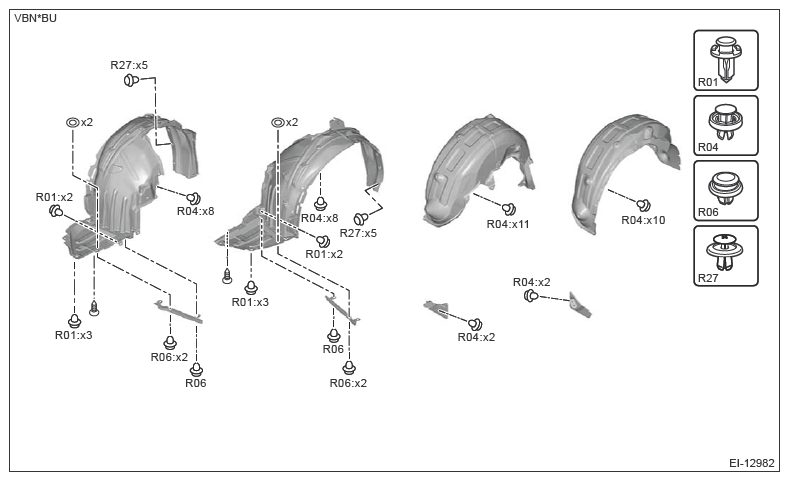

- Remove the screws and clips to remove the mud guard.NOTE:
Remove the plate air flap as required.
