Front Grille: Disassembly

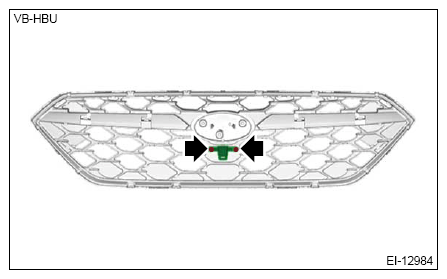

  1. Remove the screws and remove the cover front grille.
    G14612925Courtesy of SUBARU OF AMERICA, INC.

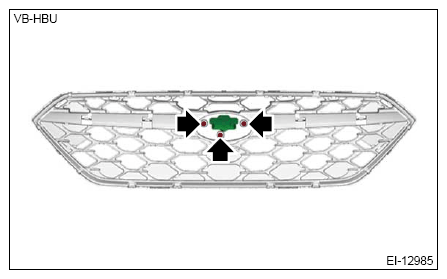

  2. Remove the ornament front.
    1. Remove the screws.
    2. Release the claws, and then remove the ornament front.
      G14612926Courtesy of SUBARU OF AMERICA, INC.
