Related Lines, More Than 52 Ω And Less Than 62 Ω (Body Can_Keyless Access)

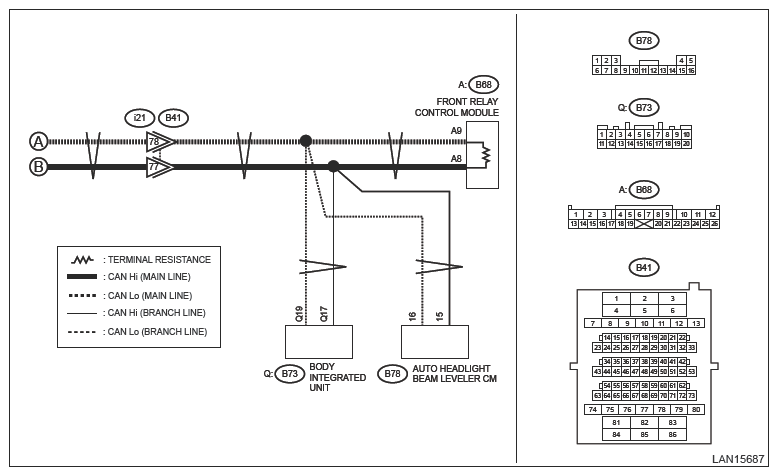

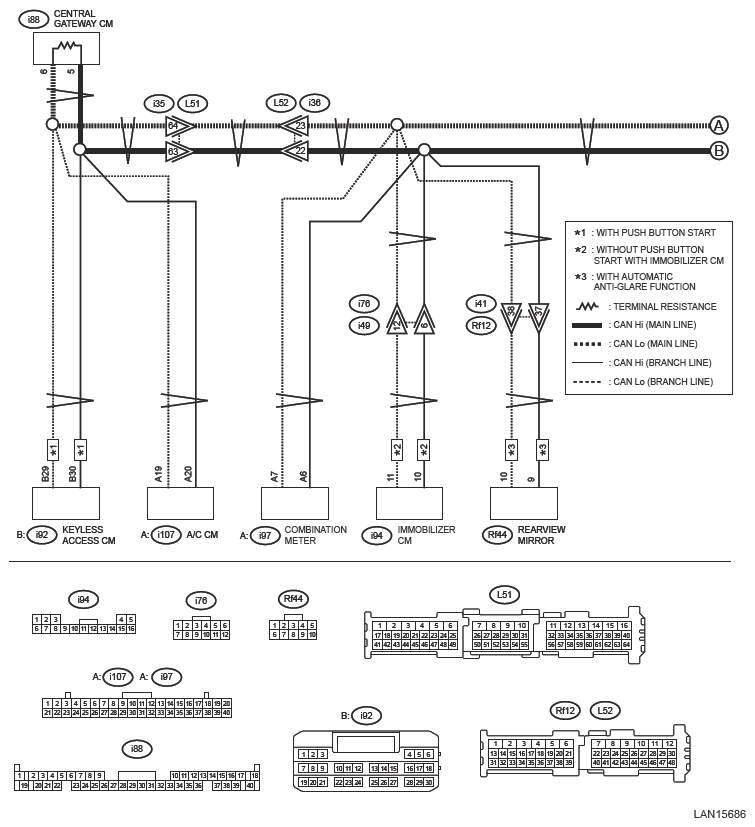

Wiring diagram:

CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the keyless access Control Module connector.
   3. Using a tester, measure the resistance between keyless access Control Module connector terminals.

      Connector & terminal

      (i92) No. 29 - (i92) No. 30:

   Is the resistance 400 Ω or more?

   Yes  : A related line between keyless access Control Module and main wiring harness is open, or main wiring harness is open at two places or more.

   No  : Go to  2.

2. CHECK RELATED LINES  .
   1. Disconnect the central gateway control module connector.
   2. Using a tester, measure the resistance between keyless access Control Module connector and central gateway control module connector.

      Connector & terminal

      (i92) No. 29 - (i88) No. 6:

      (i92) No. 30 - (i88) No. 5:

   Is the resistance 10 Ω or more?

   Yes  : Repair or replace the open circuit of keyless access related lines.

   No  : Check DTC of keyless access. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
