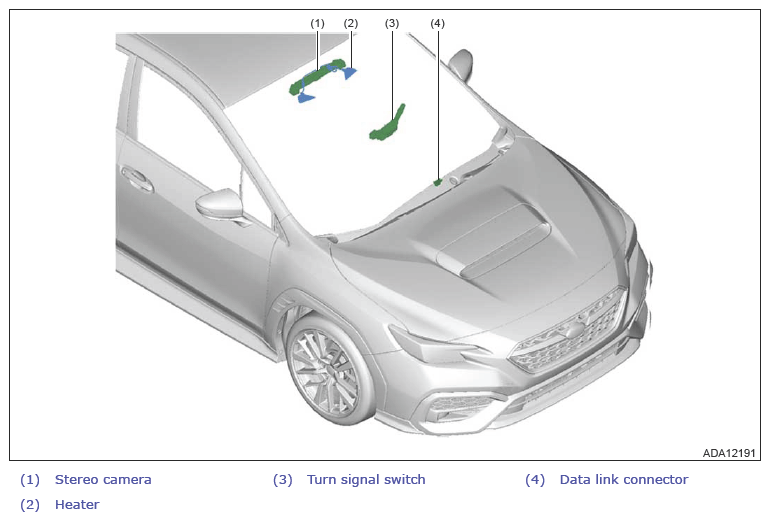

SUBARU Eyesight System (Driver Assist) (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

For the CAN communication system, refer to the LAN system. Ref. to  LAN SYSTEM (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION

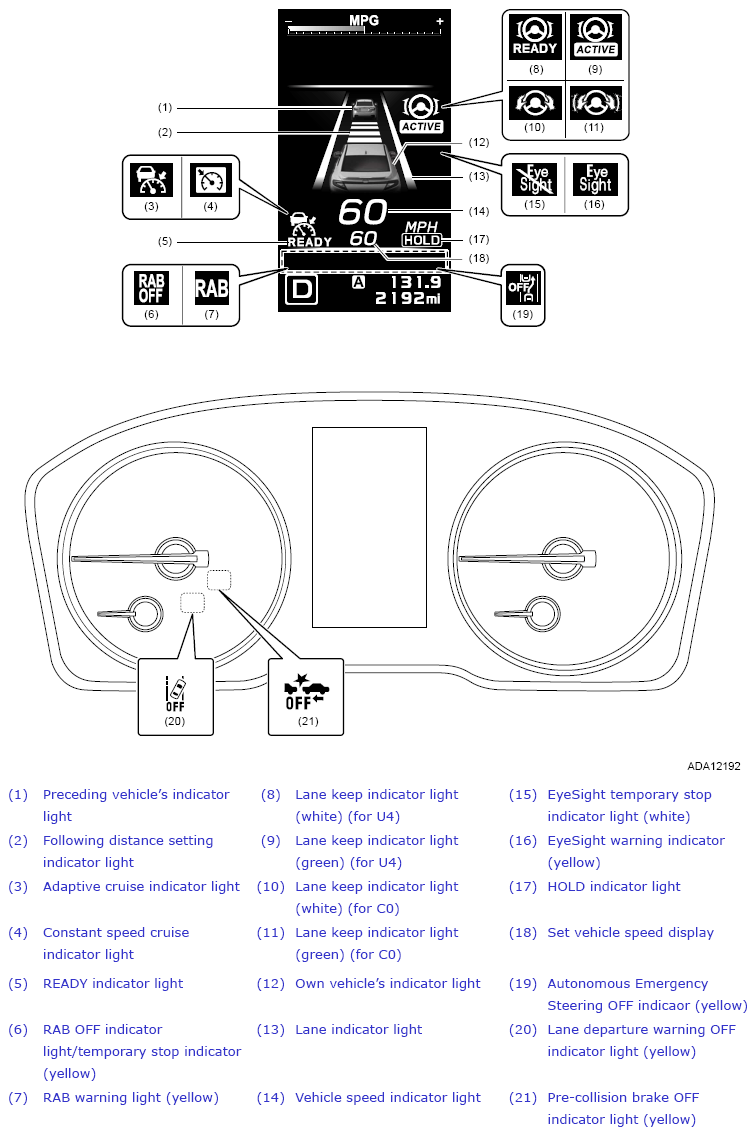

• Combination meter

  Courtesy of SUBARU OF AMERICA, INC.

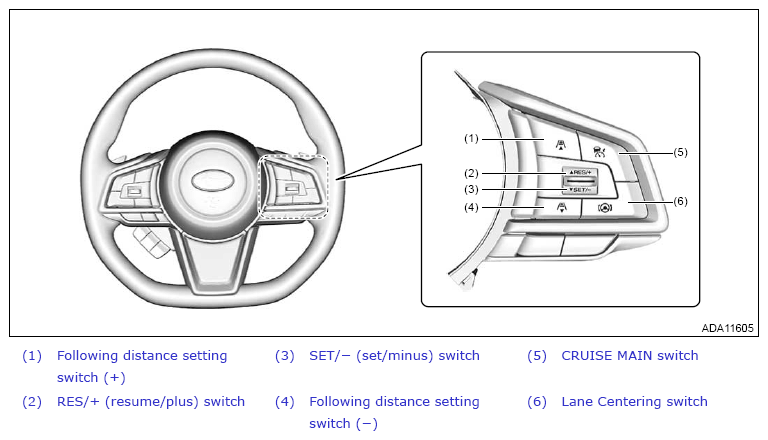

• EyeSight steering switch

  Courtesy of SUBARU OF AMERICA, INC.
