How To Use Probe

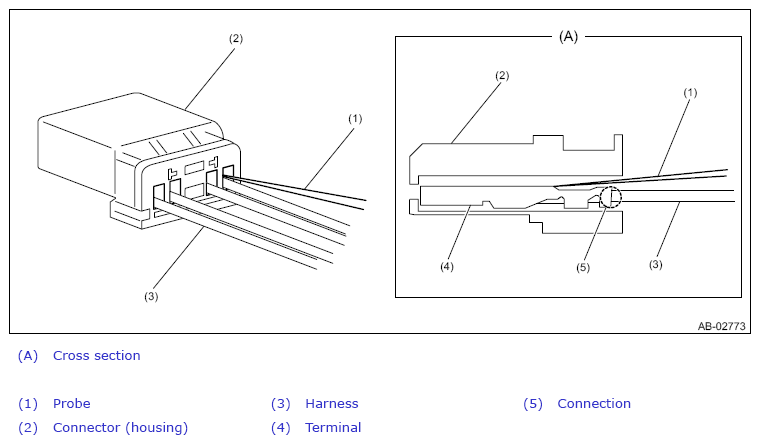

- Passenger's airbag module
Insert the probe into the harness hole, and contact it with the terminal.
CAUTION:
- Do not insert the probe forcibly .
- Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector) .
- Airbag sensor
Insert the probe into the inspection hole to contact with the terminal.
CAUTION:
- Do not push the probe with excessive force against the terminal. (Terminal will come off easily from housing, otherwise) .
- Do not insert the probe anywhere other than inspection hole. (Waterproof property will be lost, otherwise) .
